Vortex Cobalt™

Seating 5
Dimensions 2.15 x 2.15 x .92m
Jets Up to 71

Product
Features
3D Viewer
Specification
Warranties

Why choose a Cobalt™?

The Cobalt™ is our mid sized hydrotherapy spa pool. The spacious and functional design of the Cobalt™ seats up to five adults in comfort. The design and size of the Cobalt™ make it the perfect spa for those who want the extra space and all the added features of a larger spa but who can’t commit to, or don’t have the space for a large hydrotherapy spa pool.

Features

The Cobalt™ includes the neck and shoulder therapy collar, with four hydrotherapy jets embedded within it to give an extremely soothing therapeutic massage. Rejuvenation in the Cobalt™ is made easy with the existence of up to 71 powerful jets placed throughout the entire spa pool to make certain you get all the benefits from hydrotherapy massage.

Seating for up to 5 adults

The Cobalt™ is our mid sized hydrotherapy spa pool that's popular with families and entertainers. Twin loungers deliver the ultimate full body hydrotherapy massage, the shoulder and neck therapy seat concentrates on relieving stress from the upper body while the two cool down seats provide a refreshing space during full hydrotherapy sessions.

Twin loungers

With twin loungers there will be no fighting over who gets the most popular seat in the Cobalt™. Both loungers are ergonomically designed and have an array of selected jets for maximum hydrotherapy. This is twice the bliss, so lay back, relax and unwind in the Cobalt™.

1 shoulder and neck therapy seat

If you carry stress and tension in your shoulders then you'll love the shoulder and neck therapy seat in the Cobalt™. Four massaging jets are embedded within the therapy collar, combine this with the abundant jets within the seat and you have a sublime hydrotherapy massage that focuses on your problem area. Perfection.

2 cool down seats

The Cobalt™ has two cool down seats. They sit higher than the other seats and help keep your body temperature nice and consistent while enjoying a full hydrotherapy session. The cool down seats are also suitable for families with young children, so 2 - 5 year olds can enjoy the spa without having to sit on an adults lap.

Hydroglow™ backlit jets and topside controls

Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience. *(Mercury spa pool image shown)*

Purezone AOS™ automatic water care system

Enjoy crystal-clear water with less sanitiser using the Purezone™ AOS system. This advanced UV-Ozone technology automatically sanitises your spa or swim spa, ensuring safe, low-maintenance water care. Now available on Vortex™ Spas and Swim Spas from 2023.

Hydroflow™ stainless steel jets

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

SpaNet™ EcoCube™ Hybrid Pump (Optional)

Revitalize your spa with the remarkable efficiency of EcoCube™, a compact yet potent device engineered to intelligently reduce energy costs.

Hydroglow™ illuminated drink holders

It’s important to stay hydrated while in your spa. Our backlite coasters illuminate your drink and help reduce accidental spills.

Purezone™ automatic water care system

This system makes safe, clean and clear water easy and affordable. It includes two high-efficiency, pleated filters plus one Purezone™ Micron filter that removes particles down to five microns, a Purezone™ Ozone generator for advanced water clarification and the Purezone™ UV-C steriliser for removing water borne microbes.

Beverage chiller

The designers at Vortex™ thought of everything and gave a nod to entertaining by including a built in bottle cooler.

Tranquil water feature

There is nothing more relaxing than the sound of running water. Add a touch of light and you have created the perfect sanctuary to be rested and mindful.

Hydroglow™ perimeter and cabinet lighting

The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.

Automatic aromatherapy dispenser

Aromatherapy is a holistic treatment that uses natural plant extracts to promote health and well-being and enhance both physical and emotional health. The adjustable Vortex™ Aromatherapy system automatically injects Aromatherapy scent into the spa water.

Premium SpaNet™ controller

The SpaNet SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™.

SpaNet™ variable output heater

The SpaNet™ SV Series has a variable output heater. Unlike most controllers, this means when the spa's jet pump is turned on, the heater turns DOWN rather than OFF. This has the benefit of maintaining the spa's temperature while you are using it, rather than cooling it down.

SpaNet™ integrated heat pump interface (Optional)

If you want to save up to 75% on your spa heating cost, you can choose the optional SpaNet™ Hybrid Heat Pump. This integrated system is plug and play with the SV controller.

SV SmartLINK™ WiFi module (Optional)

Control and monitor your spa remotely from anywhere in the world! With the optional SpaNet™ SmartLINK™ WiFi/bluetooth control unit, just download the SpaNet™ SpaLINK™ phone app (Android or Apple) and you can control all your spa functions simply and remotely.

Contemporary colour palette

Our contemporary colour palette is hand selected from the latest home design fashions. Created to please those with the most discerning tastes looking for intelligent colour solutions.

Explore 360° view

View in Home

Customise

Shell Colours

Gypsum

Sterling Silver

Pearl Shadow

Cabinet Colours

Coastal Grey

Chocolate

Natural

*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.

Compare Cobalt™ models

For the ultimate in hydrotherapy, upgrade to Cobalt Hydroplus (HP)

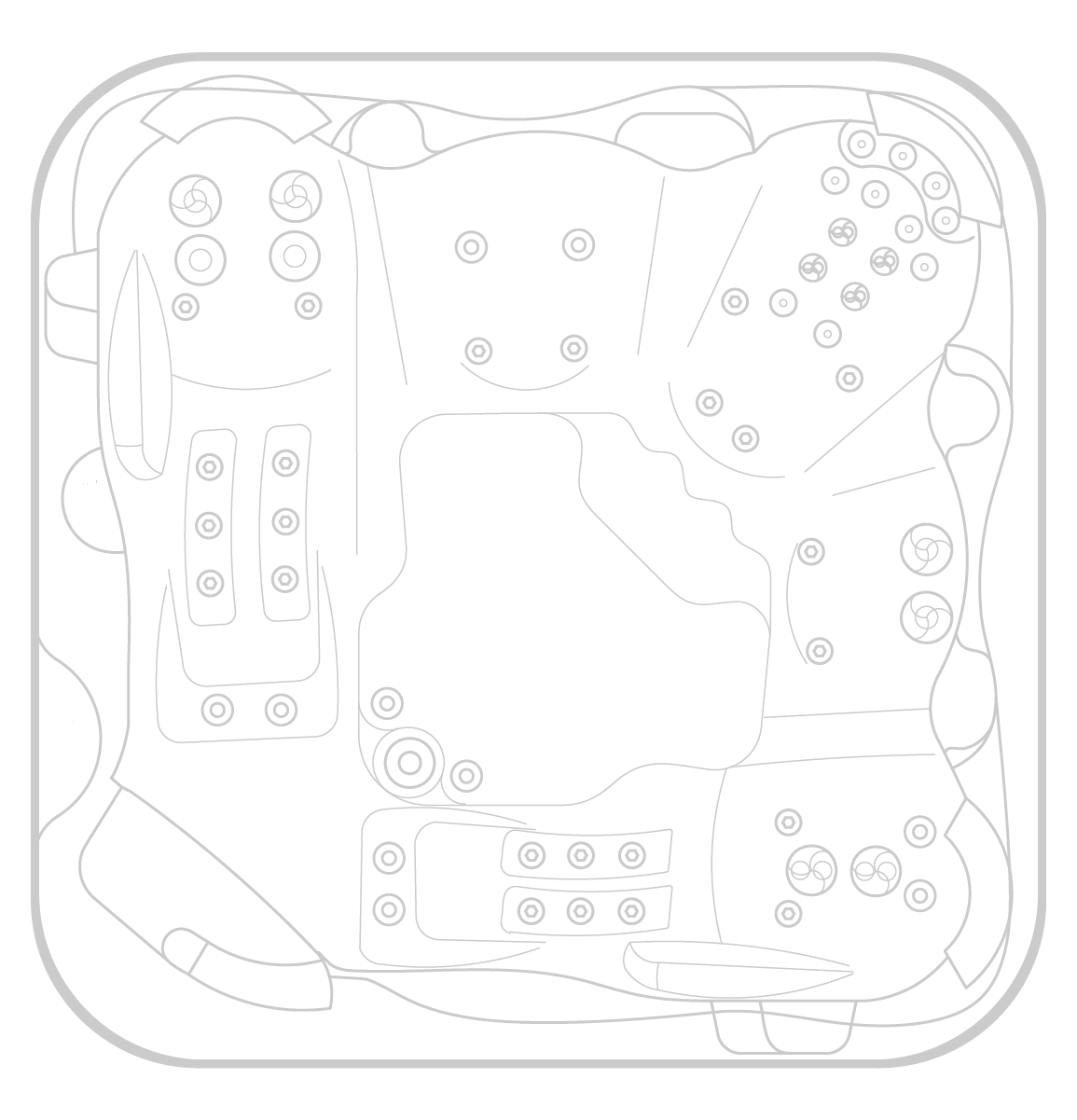

Cobalt™

The Cobalt™ features the same ergonomically designed shell as the Hydroplus™ model but with one jet pump instead of two. One thing to consider in a spa with this many jets and one pump, is that you won't get full pressure from all jets at one time. A diverter valve allows you to direct the pressure either into the loungers, or into the remaining seats or you can achieve lower pressure in all seats at one time. This model requires 15 amps

1 pump

Cobalt™ Hydroplus™

If you want the very best Hydromassage experience, then the Cobalt™ Hydroplus™ model is for you. It boasts an added SmartFlow™ jet pump to power the additional, strategically placed Hydroflow™ jets. This model requires 32amps to fully utilise the Hydroplus™ capabilities.

2 pumps

Specifications

Detailed specifications for the Cobalt™ spa pool.

Specification Sheet

2.15m

Specifications	Cobalt™ Spa	Cobalt™ Hydroplus™ Spa
Dry weight	339kg	386kg
Filled weight (inc cover)	1620.5kg	1746.5kg
Lift weight	434kg	491kg
Intuitive spa controller	SV2	SV3
Programmable circulation pump	1	1
Jet pumps	1	2
Variable speed airblower	1	1
Variable output heater	3kW max	5.2kw max
Electrical requirements	15 amps max	32 amps max
Water capacity	1265 litres	1344 litres
Jets	57	71
Seating	5 seats	5 seats
Dimensions	2.15 x 2.15 x 0.92m	2.15 x 2.15 x 0.92m
Electrical requirements	15 amps	32 amps max

Superior hydrotherapy

The Vortex Cobalt™ features a range of hydrotherapy jets for a relaxing massage and muscle recovery.

Standard Jets

1 x 127mm (5") Vortex H2 Volcano Jet

8 x 140mm (5.5") Directional Jet s

4 x 140mm (5.5") Single Roto Jet (2024)s

2 x 140mm (5.5") Dual Roto Jet (2024)s

10 x 102 mm (4") Directional Jet s

20 x 63mm (2.5") Directional Jet (2024)s

4 x 50mm Twin Spinning Jets

24 x 40mm Air Jets

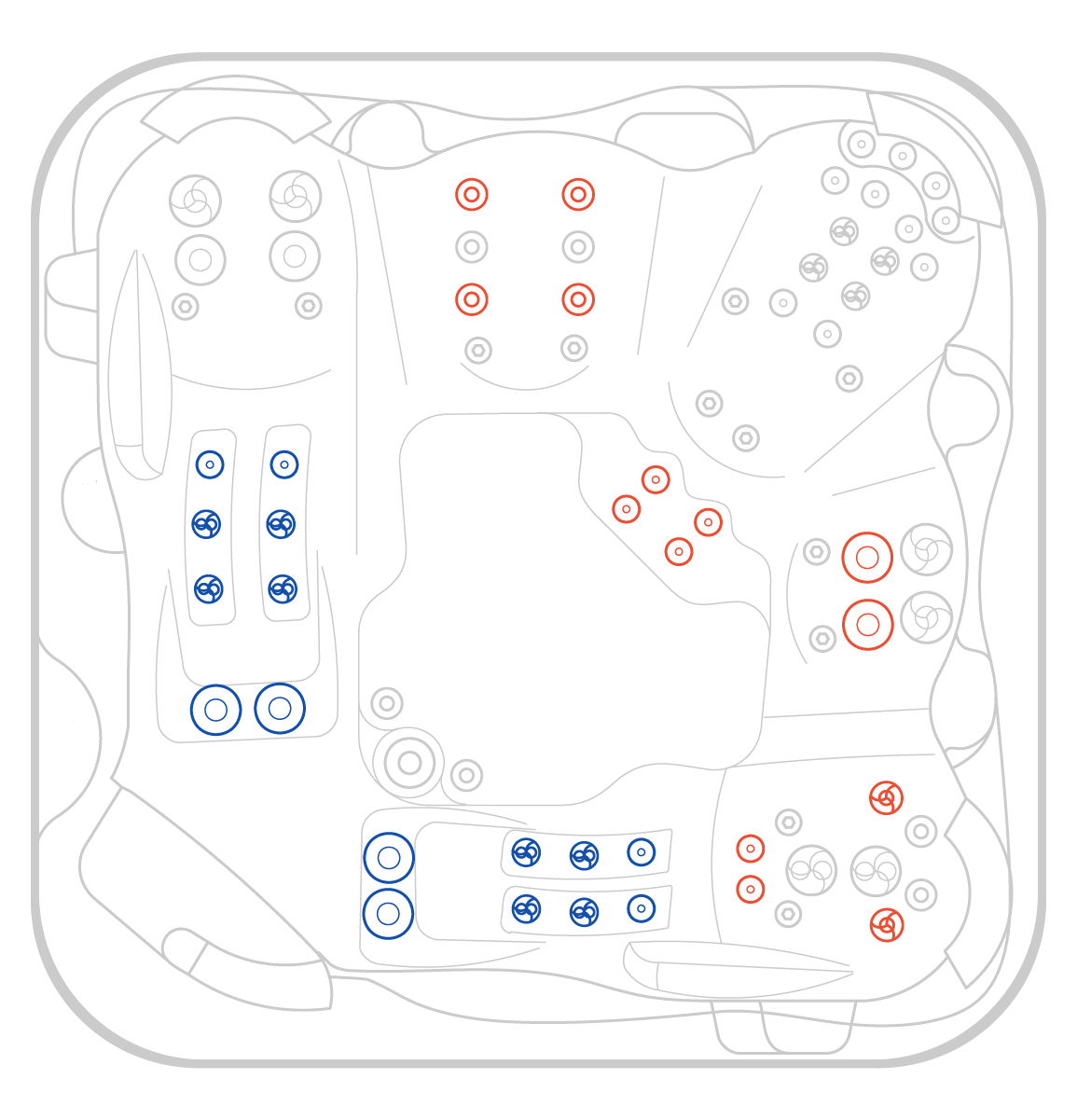

Cobalt™ Hydroplus™ model shown

The layout shows how different jets are placed in this model.

Jet Types

This model features eight jet types that are thoughtfully positioned to achieve specific effects.

127mm (5") Vortex H2 Volcano Jet

These jets are either fitted into the footwell for the ultimate foot massage or positioned facing upwards in the middle of the spa to treat hamstrings, gluts, lower back and even the front of the abdomen.

140mm (5.5") Directional Jet

The 140mm directional jets provide an intense, pressure point massage. These are particularly effective at treating knotted muscles in the back.

140mm (5.5") Single Roto Jet (2024)

This large single spinner delivers a rotating massage, mimicking a masseuse's kneading thumb for an effective back massage.

140mm (5.5") Dual Roto Jet (2024)

The twin spinner mimics the kneading effect of the single spinner but spins twice as fast, creating a more pulsating massage.

102 mm (4") Directional Jet

This style of directional jets gives a targeted but less intense pressure point massage. It's very effective for a more prolonged treatment of tired muscles.

63mm (2.5") Directional Jet (2024)

These jets are usually used in banks of 8 or more jets and are often coupled with 50mm twin spinners to give a shiatsu style pressure point massage therapy.

50mm Twin Spinning Jet

The 50mm twin spinner offers a pulsating massage effect ideally suited for neck and shoulder therapy or as part of a shiatsu style massages treatment when teamed with 50mm directional jets.

40mm Air Jet

As the name implies, the 40mm air jets emit an air stream as opposed to a water stream. These are almost always used under the legs and buttocks to provide a relaxing soft tissue massage treatment.

Warranties

The Vortex Spas™ range of spas is covered by comprehensive warranty agreements providing peace of mind when you purchase Vortex Spas™.

Download Warranty

Lifetime Warranty

Vortex Permaframe™ is guaranteed for life against a loss of structural integrity leading to the spa being inoperable.

5 Year Plumbing, Heater & Jet Warranty

The plumbing system of all Vortex Spas™ is warranted against leaking for 5 years. The heater and jets of all Vortex Spas™ are warranted against defects for a period of 5 years.

2 Year Pump & Equipment Warranty

The circulation pump, jet pump(s) and electronic control system of all Vortex Spas™ are warranted against defects for 2 years. *Please consult your local store for complete warranty details.

10 Year Non Pro rata Structural Warranty

All Vortex Spas™ are offered with a 10 year 'non pro-rata' shell structure warranty. This means that if the spa's shell cracks resulting in water loss, for a period of 10 years, the spas shell shall be replaced.

5 Year Non Pro rata Acrylic surface warranty

All Vortex Spas™ are offered with a 5 year 'non pro-rata' acrylic surface warranty. This means that if the acrylic surface blisters resulting in water loss for a period of 5 years, the spa's shell shall be replaced.
