Why choose a Palladium™?
With seating for ten adults, step-in entry, up to 93 jets, twin loungers, a neck and shoulder massage seat plus a multitude of water features and lighting options, you’ll be hard-pressed to find a more impressive spa setup than the Vortex Palladium™. At a massive 3.5m x 2.3m there’s space to entertain a crowd and the Palladium™ also makes a fabulous family spa with room for kids to swim and play. A bonus feature for anyone who’s a little unsteady on their feet is the step-down access. This safety feature makes getting in and out easy for everyone - and provides extra seats for littlies. If you’re prepared to go big, then kick back and enjoy quality time in the Vortex Palladium™, you won’t regret it.
Features
Hydroflow™ stainless steel jets (Avanté)
Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.
Hydroglow™ backlit jets and topside controls (Avanté)
Chromotherapy is the science of using colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.
Purezone™ automatic water care system
This system makes safe, clean and clear water easy and affordable. It includes two high-efficiency, pleated filters plus one Purezone™ Micron filter that removes particles down to five microns, a Purezone™ Ozone generator for advanced water clarification and the Purezone™ UV-C steriliser (Avanté) for removing water borne microbes.
Contemporary colour palette.
Our contemporary colour palette is hand selected from the latest home design fashions. Created to please those with the most discerning tastes looking for intelligent colour solutions.
Customise
Shell Colours
Cabinet Colours
*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.
Compare Palladium™ models
Consider upgrading to the premium hydromassage experience and added power of three pumps and extra jets with the Palladium™ Hydroplus™
Palladium™
The Palladium™ features the same ergonomically designed shell as the Hydroplus™ model but with two jet pumps instead of three. One thing to consider in a spa with this many jets and two pumps, is that you won't get full pressure from all jets at one time. A diverter valve allows you to direct the pressure either into the loungers, or into the remaining seats or you can achieve lower pressure in all seats at one time. This model requires 32 amps
Palladium™ Hydroplus™
If you want the very best Hydromassage experience, then the Palladium™ Hydroplus™ model is for you. It boasts an added SmartFlow™ jet pump to power the additional, strategically placed Hydroflow™ jets. This model requires 32amps to fully utilise the Hydroplus™ capabilities.
Why Choose an Avanté Upgrade
Upgrade to the Palladium™ Spa Avanté and take your spa experience to the next level with a range of features designed for added comfort and superior luxury. The Avanté model brings together a collection of Vortex™ Spas’ most popular upgrades which, when purchased together, offers significant savings.
| Palladium™ Spa Pool Standard | Palladium™ Spa Pool Avanté | |
|---|---|---|
60 day money back guarantee If not 100% satisfied with your purchase, pay the return and we'll give your money back. Terms and conditions apply. | ||
10 years Vortex Platinum Shell Warranty You can replace many components on a spa, but not the shell. We've put our money where our mouth is. We stand behind every spa and swim spa we sell with our amazing 10 year shell warranty. | ||
ThermoLock™ High-Density Locking Cover Most of the heat loss in a spa occurs through the spa's cover. As such, it is important that the spa's cover is manufactured from a high-density foam that has better heat retention properties. The Vortex™ uses a high-density foam insert which is also heat shrink sealed to prevent water ingress, prolonging the cover's life. | ||
Purezone™ Ozone automatic water clarifier The Water Clarifier uses ozone technology to oxidize and remove micro organics resulting in the clearest water available. | ||
Hydroglow™ LED flood light This powerful LED flood light does the heavy lifting to illuminate your spa at night. | ||
Premium SpaNet™ Controller The SpaNet™ SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™. | ||
Purezone™ UV-C automatic water purifier The UV-C technology found in the Purezone™ system is not new. In fact you will find it purifying drinking water and public swimming pools all around the world. However, Vortex Spas™ have pioneered it's use in spa pools. UV sterilization kills 99.9% of water borne viruses and bacteria, including the hard to reach Giardia and Cryptosporidium viruses. | — | |
Timber-free, galvanized steel frame This timber-free, galvanised steel frame, is super strong and will last the distance so you don't have to worry. | — | |
ThermoLock™ Dual layer Insulation This dual layer insulation system ensures that not only the water in the spa is insulated, but also the water in the pipework. This option adds a higher level of heat retention than Vortex™ Spas' standard Thermolock™ Perimeter insulation. | — | |
Hydroflow™ stainless steel jets Hydroflow™ Stainless Steel jets use the famous Vortex™ bearingless jet design which provides a premium massage without seizing up like lessor jets. | — | |
Hydroglow™ Backlit jets and topside controls Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience. | — | |
Hydroglow™ Perimeter and cabinet lighting The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood. | — | |
Hydroglow™ Illuminated drink holders These backlit drink holders are functional and beautiful while creating a lighted, non-slip landing pad for your favourite beverages. | — | |
Hydroglow™ backlit laminar jets Laminar jets create perfect streams of backlit water giving a gentle visual display. The jets operate independently of the hydrotherapy jets, so they can be turn your spa into an impressive light display in your backyard. | — |
Specifications
| Specifications | Palladium™ | Palladium™ Hydroplus™ |
|---|---|---|
| Dry weight | 665kg | 752kg |
| Filled weight (inc cover) | 3345kg | 3432kg |
| Lift weight | 930kg | 930kg |
| Intuitive spa controller | SV3 | SV3 |
| Programmable circulation pump | 1 | 1 |
| Jet pumps | 2 | 3 |
| Variable speed airblower | 1 | 1 |
| Variable output heater | 5.2kW max | 5.2kW max |
| Electrical requirements | 32 amps max | 32 amps max |
| Water capacity | 2650 litres | 2650 litres |
Jet Layout
Standard Jets

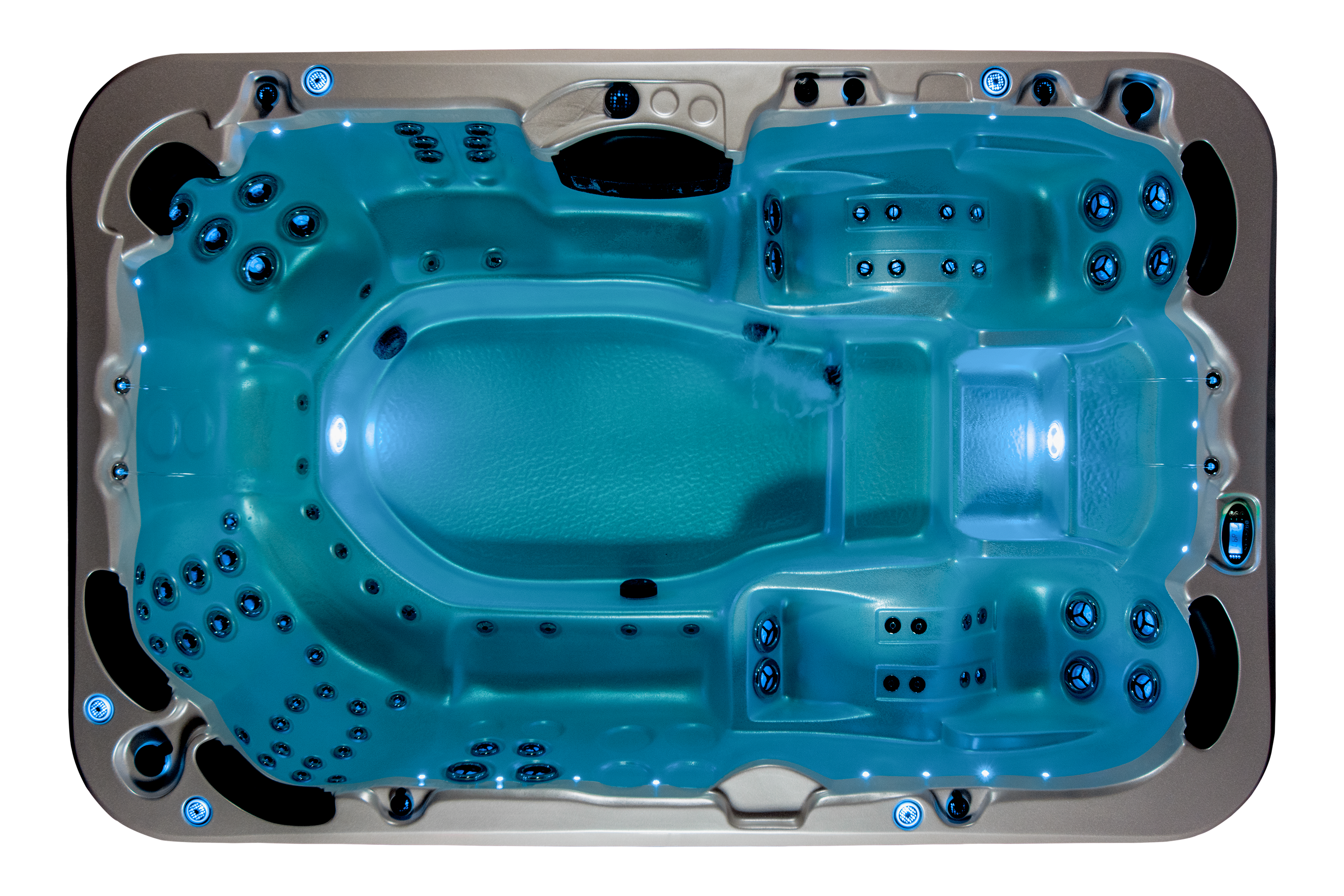

Palladium™ Jet Layout
The Vortex Palladium™ is packed full of jets for a superior hydrotherapy experience including jets for targeted back, neck and shoulder pain.
Jet Types
The Vortex Palladium™ features a variety of jets perfect for a full body hydrotherapy experience.

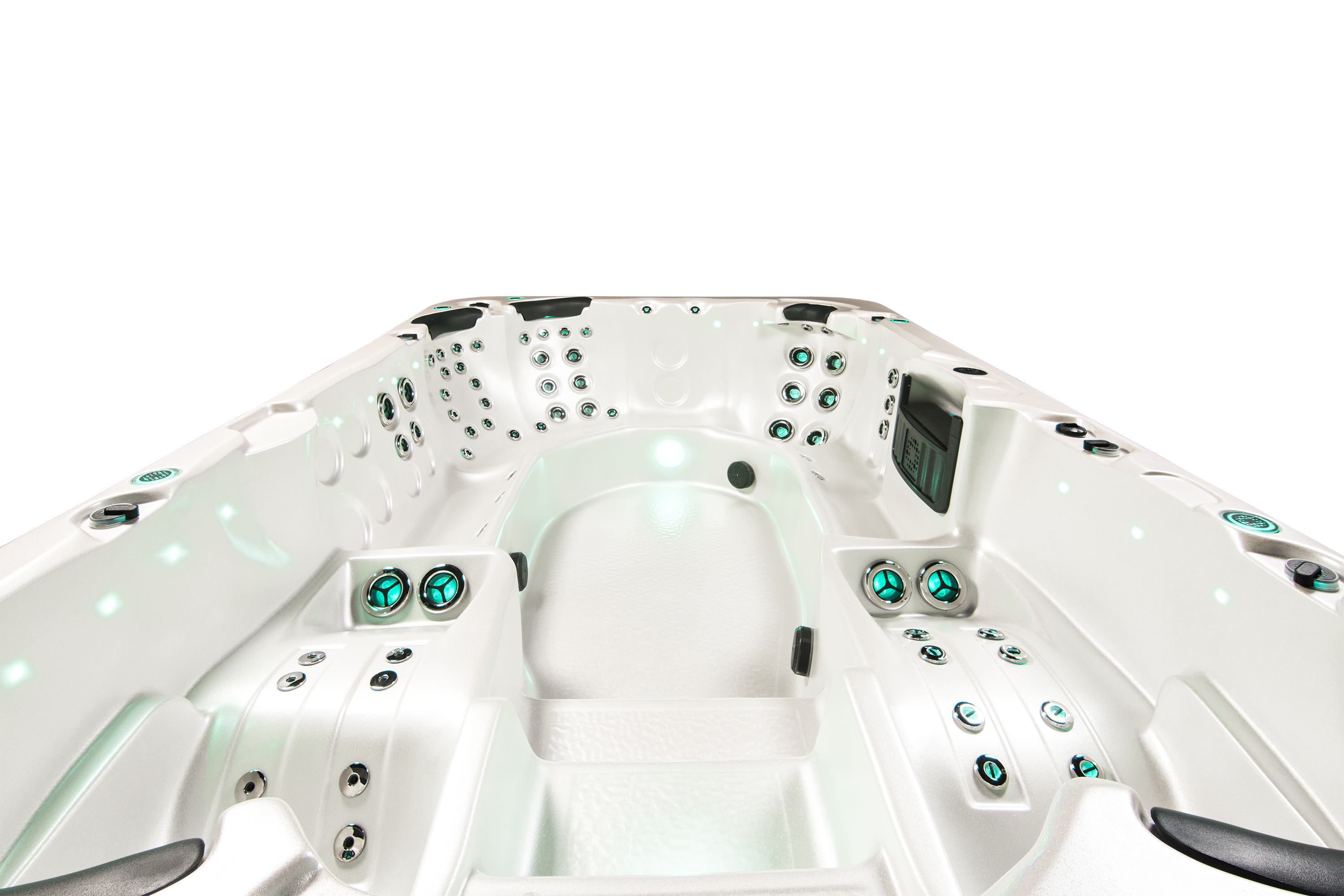

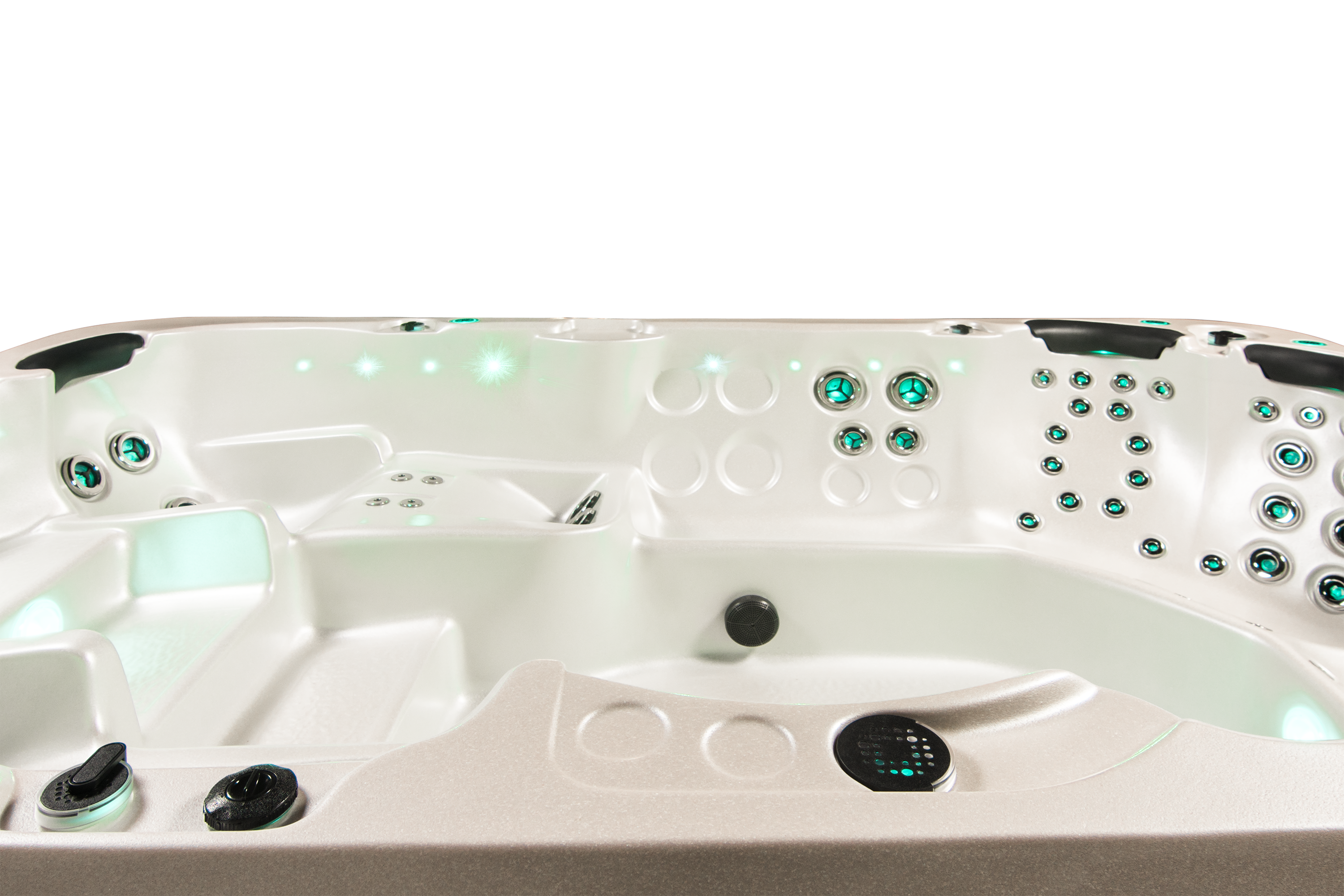

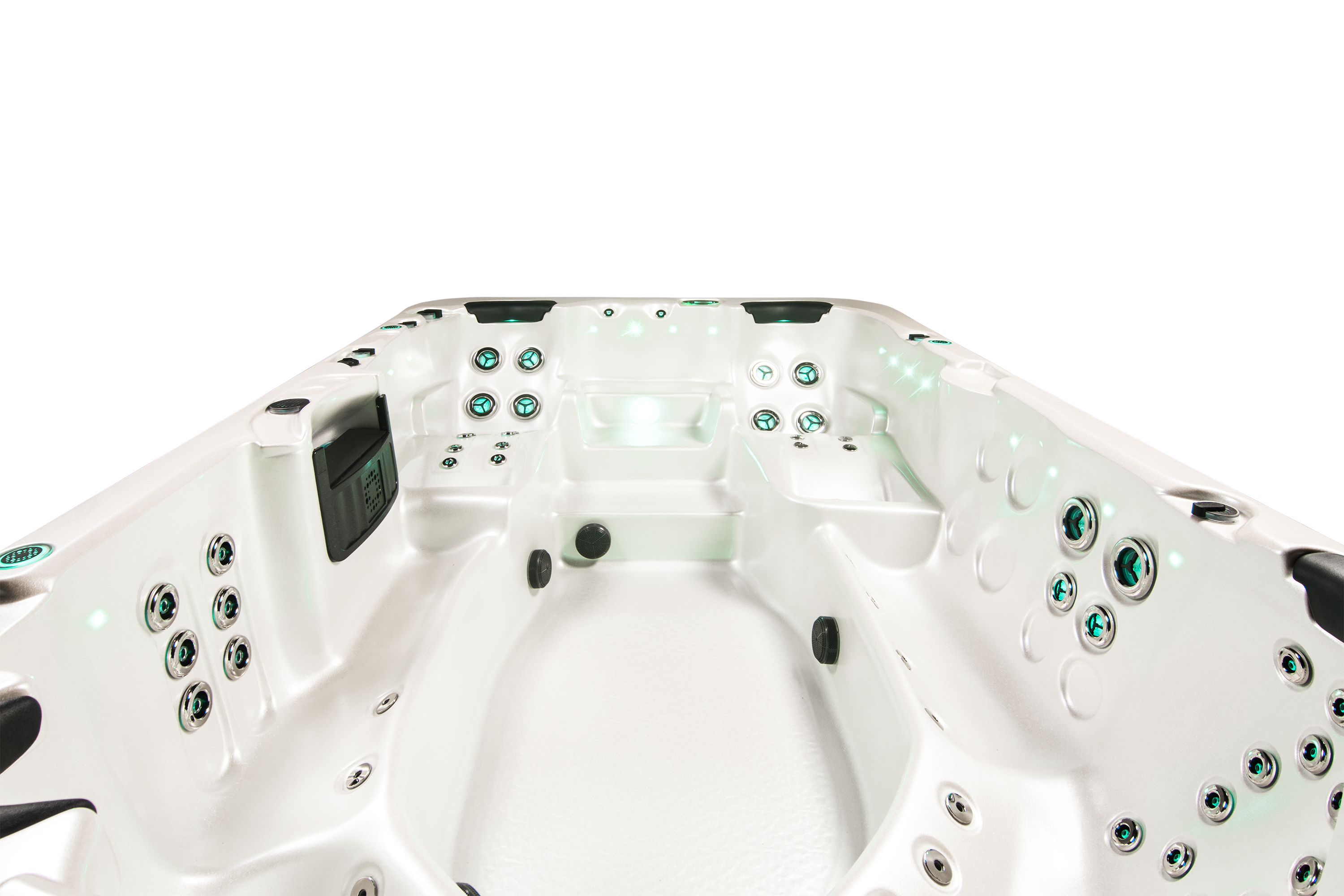

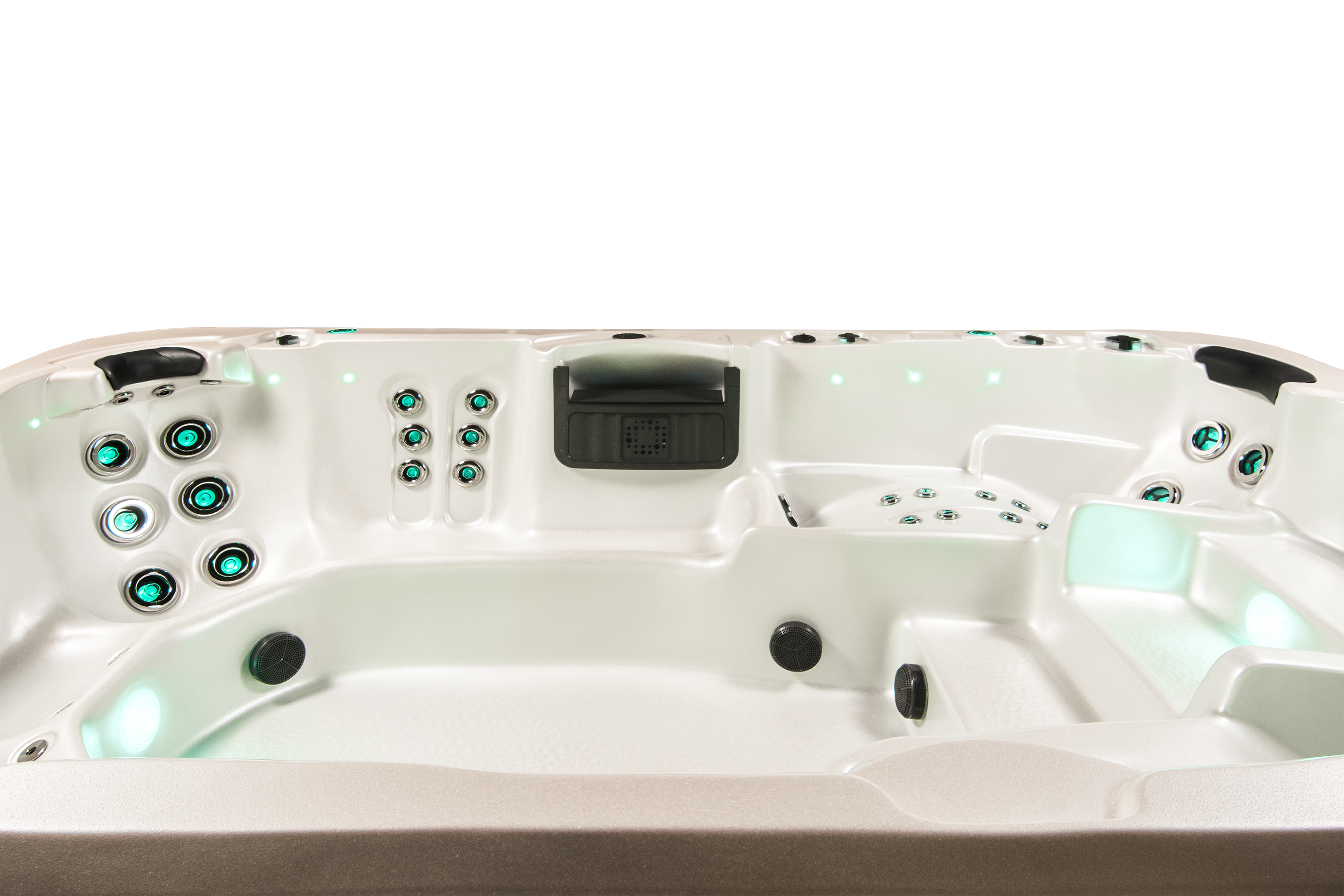

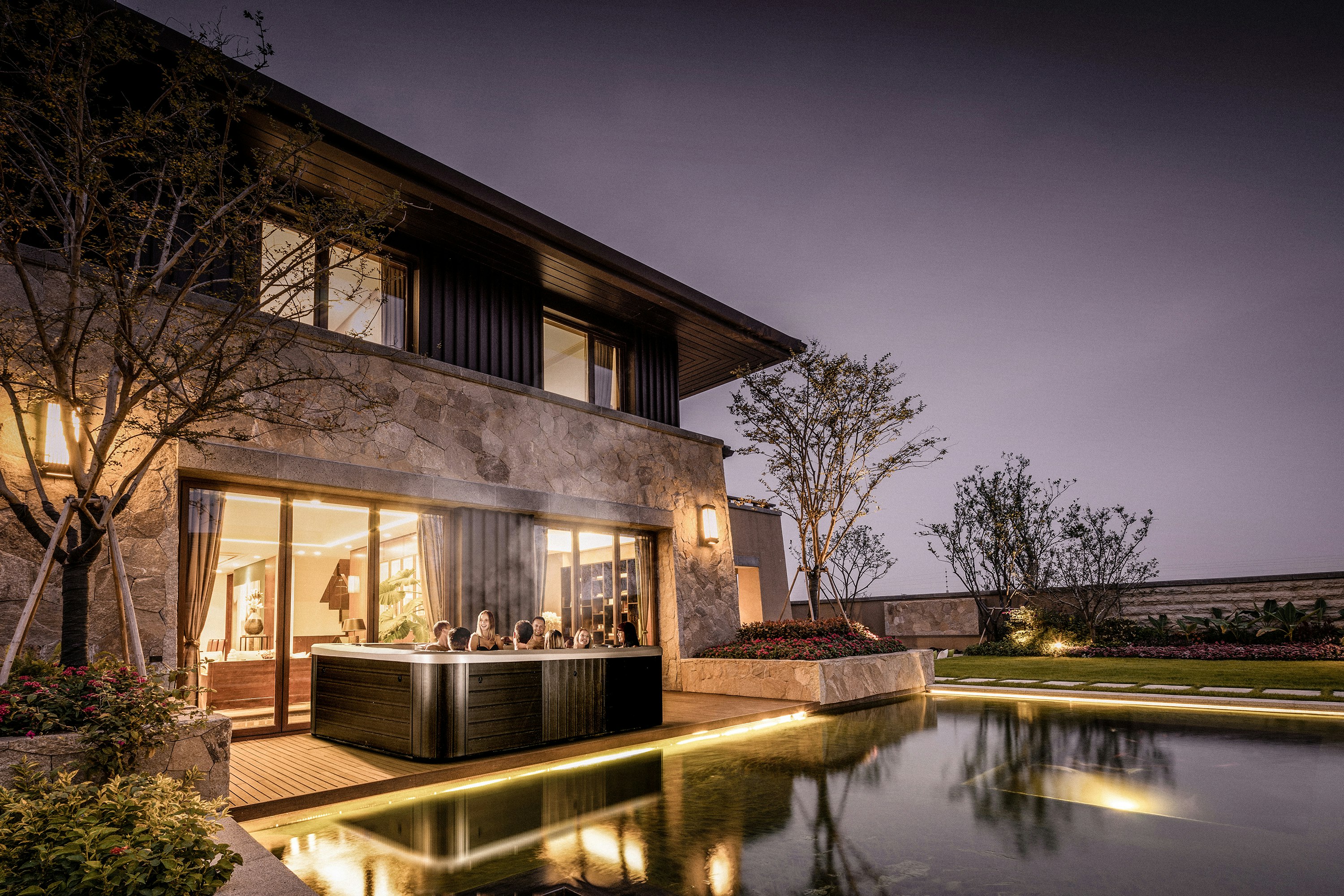

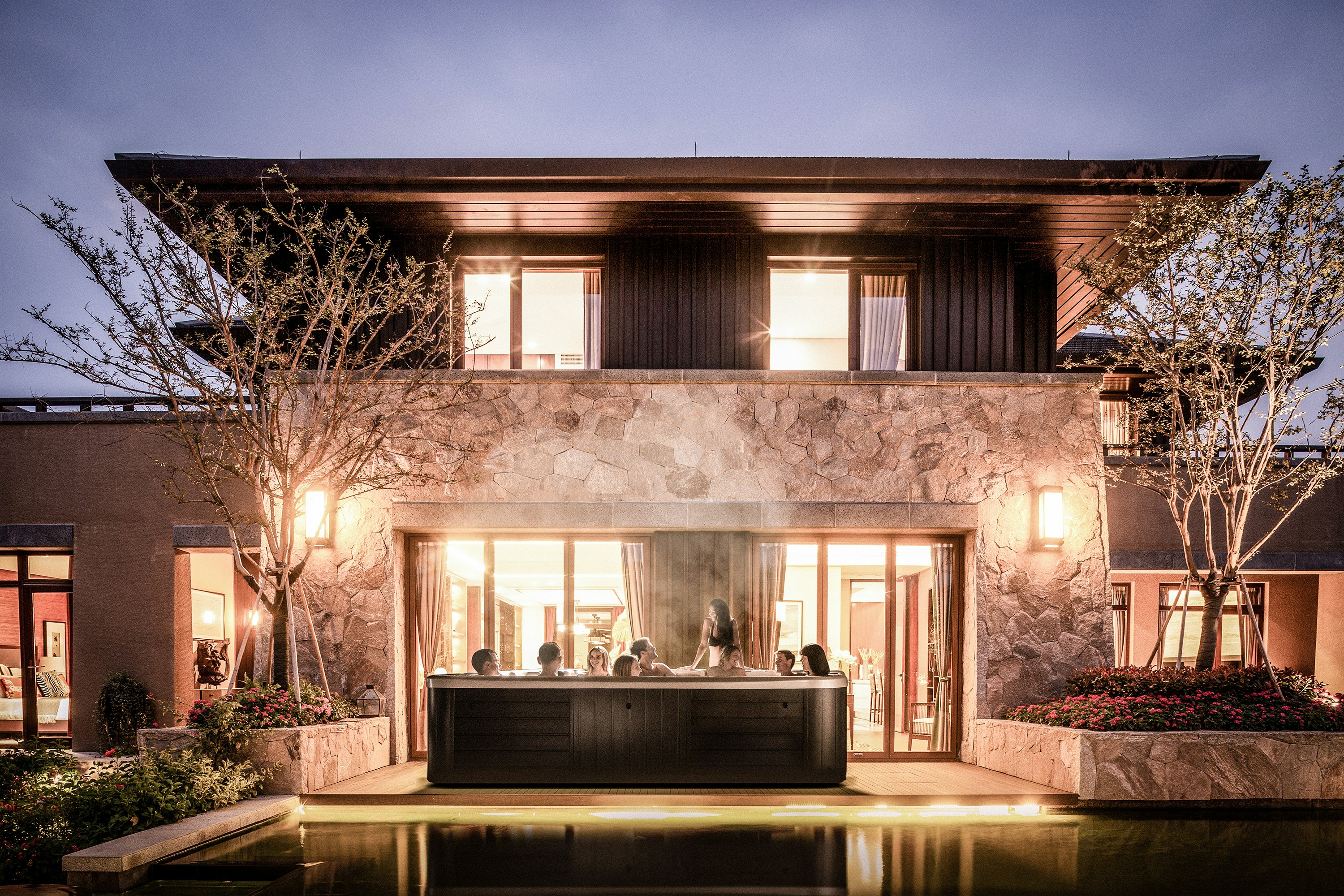

Palladium Gallery
Warranties
The Vortex Spas™ range of spas is covered by comprehensive warranty agreements providing peace of mind when you purchase Vortex Spas™.
Download Warranty
Acrylic surface warranty
All Vortex swim spa’s are offered with a 5 year ‘non pro-rata acrylic surface warranty. Our high quality acrylic surface warranty guarantees against any surface blisters that result in water loss for five years.
Structural shell warranty
Vortex Spa’s structural warranty is non pro-rata. So if your swim spa’s shell structure fails anytime within the 10 year warranty, we replace it. No questions asked.
Structural shell warranty (duplicate)
Vortex Spa’s structural warranty is non pro-rata. So if your swim spa’s shell structure fails anytime within the 10 year warranty, we replace it. No questions asked.
Structural shell warranty (duplicate)
Vortex Spa’s structural warranty is non pro-rata. So if your swim spa’s shell structure fails anytime within the 10 year warranty, we replace it. No questions asked.
Structural shell warranty (duplicate)
Vortex Spa’s structural warranty is non pro-rata. So if your swim spa’s shell structure fails anytime within the 10 year warranty, we replace it. No questions asked.
Similar Spa Pools
You may want to check out these similar spas to compare features and find the right spa for you and your family.
 Vortex Palladium™ |  Vortex Spectrum™ |  Vortex Titanium™ | |
|---|---|---|---|
| Seating | 10 | 6 | 10 |
| Dimensions | 3.52 x 2.29 x .90m | 2.30 x 2.30 x .92m | 3.00 x 2.30 x .90m |
| Volume | 2,650 ltr | 1,352Ltr | 1,990 ltr |
| Jets | Up to 98 | Up to 81 | Up to 54 |
| Weight (Full) | 3,432 kg | Up to 1776kg | 2,594 kg |
