Vortex Aquagym Max™

Seating 4
Dimensions 4.49 x 2.31 x 1.3/1.5m
Jets Up to 81

Product
Features
3D Viewer
Specification
Warranties

Why choose the Aquagym Max™?

The Aquagym Max™ is the ultimate mid-sized, single-zone swim spa and provides similar features and functionality as our smaller Aquagym™ model, however, the Aquagym Max™ is longer which provides a larger swim zone and it features the famous Vortex™ hydrotherapy lounger.

Features

Check out the top 6 features of the Vortex Aquagym Max™.

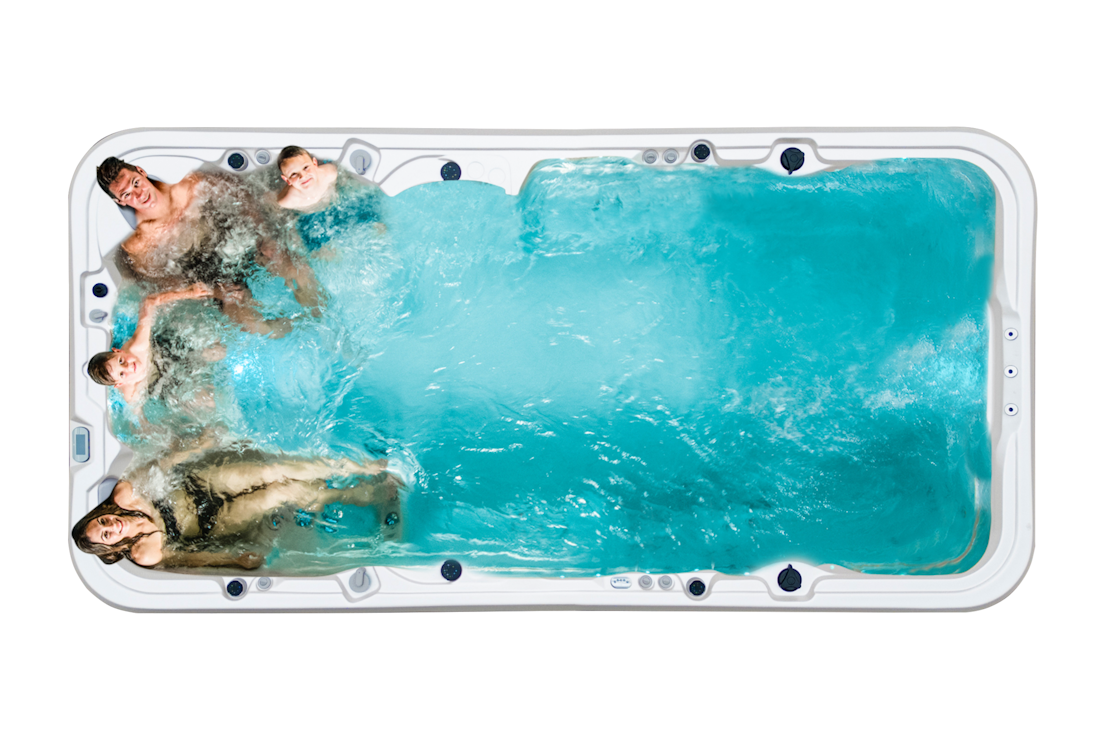

Seating for up to 4 adults

The Aquagym Max Pro comfortably seats four adults. The seating arrangements in the Aquagym Max include a hydrotherapy lounger, a neck and shoulder therapy seat and 2 back massage seats that provides a welcome and refreshing space during your hydrotherapy or training sessions.

Our large, fully featured, single zone swim spa.

The Aquagym Max™ measures 4.49 by 2.31 metres. It is a true, single-zone, swim spa. Its generous size allows a swim zone and hydrotherapy spa area to share the same space. The Aquagym Max™ is available in either the standard 1.3 depth or the XD (Extra Depth) version which is 1.5 metres deep.

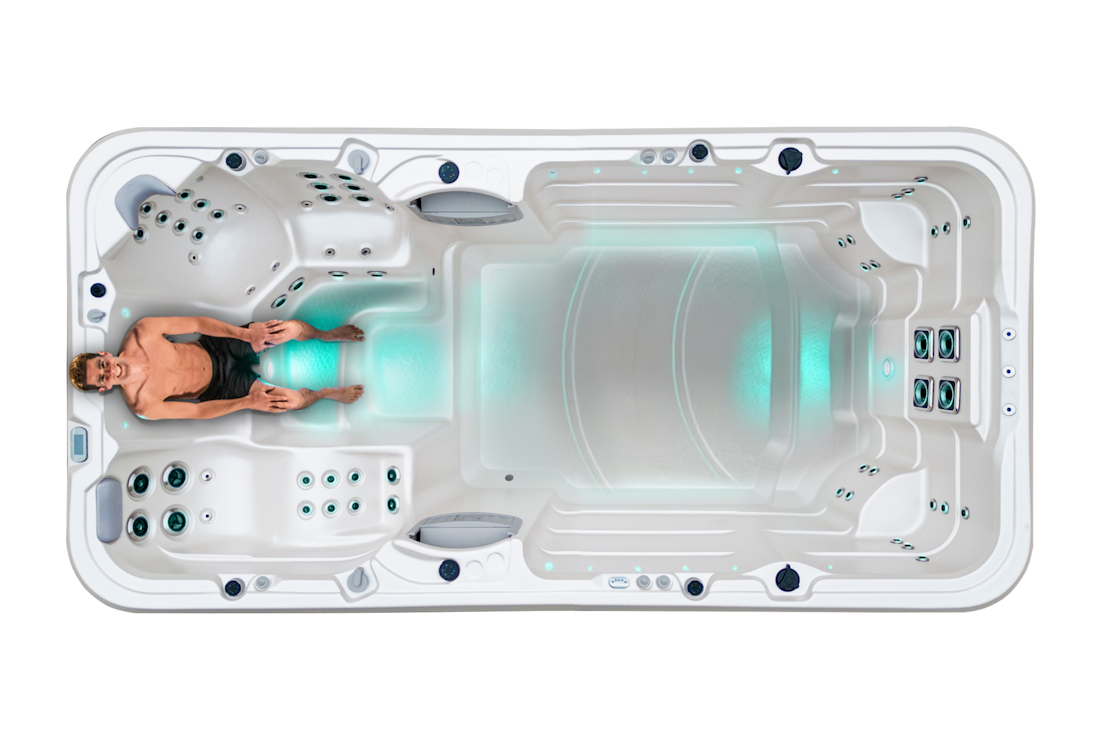

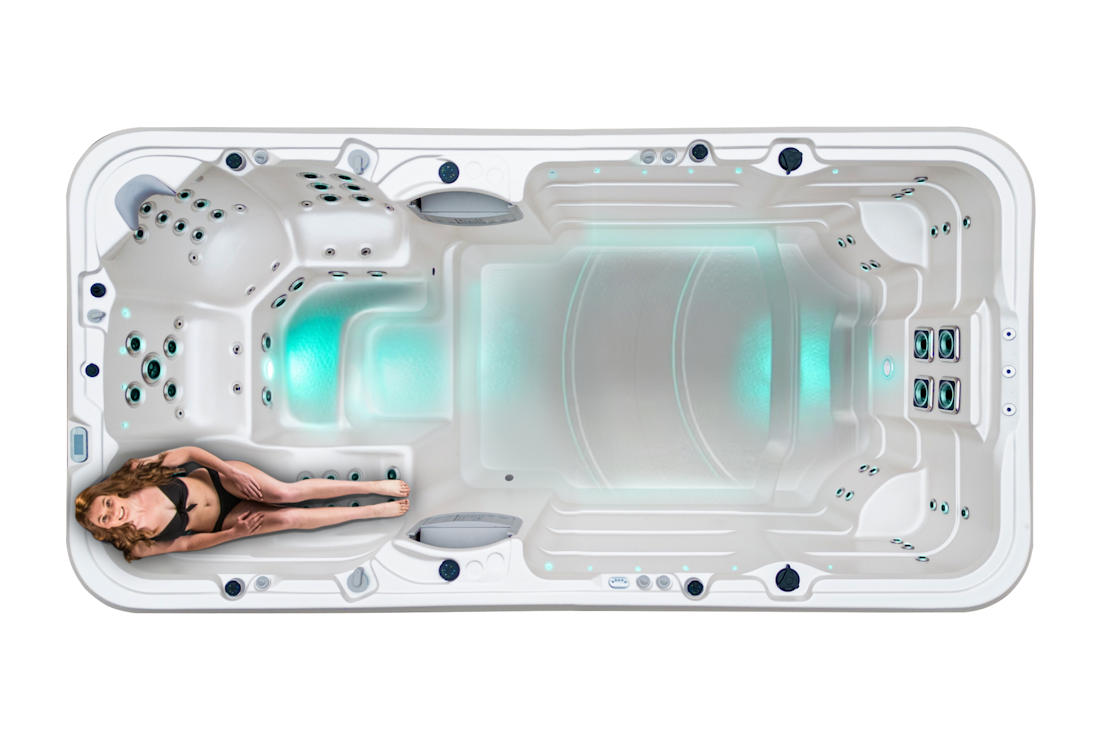

1 hydrotherapy lounger

What better way to unwind after a great workout than relaxing in a fully jetted hydrotherapy lounger? A combination of air and hydrotherapy jets ensures your entire body gets a massage, from your shoulders to your feet. This is true relaxation, Aquagym Max™ style.

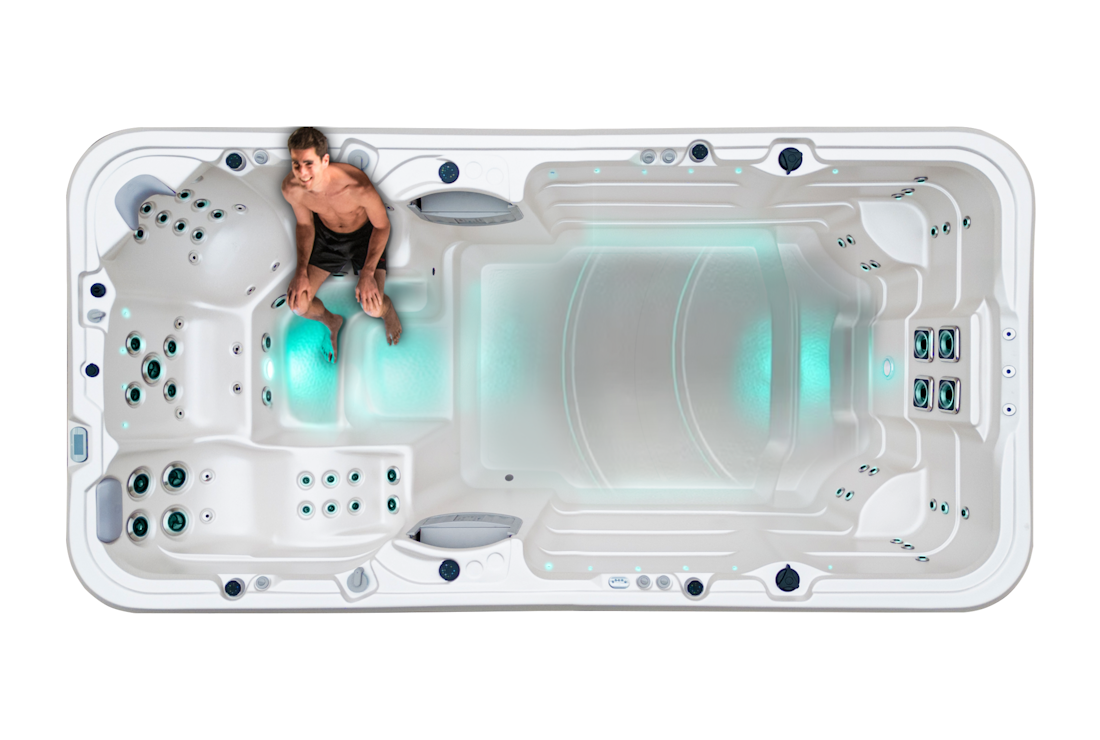

1 shoulder and neck therapy seat.

If you feel stress and tension in your shoulders, you'll love the shoulder and neck therapy seat in the Aquagym Max™. Four massaging jets are embedded within the therapy collar, combine this with the seat jets and you have a sublime hydrotherapy massage that focuses on your problem area. Perfection.

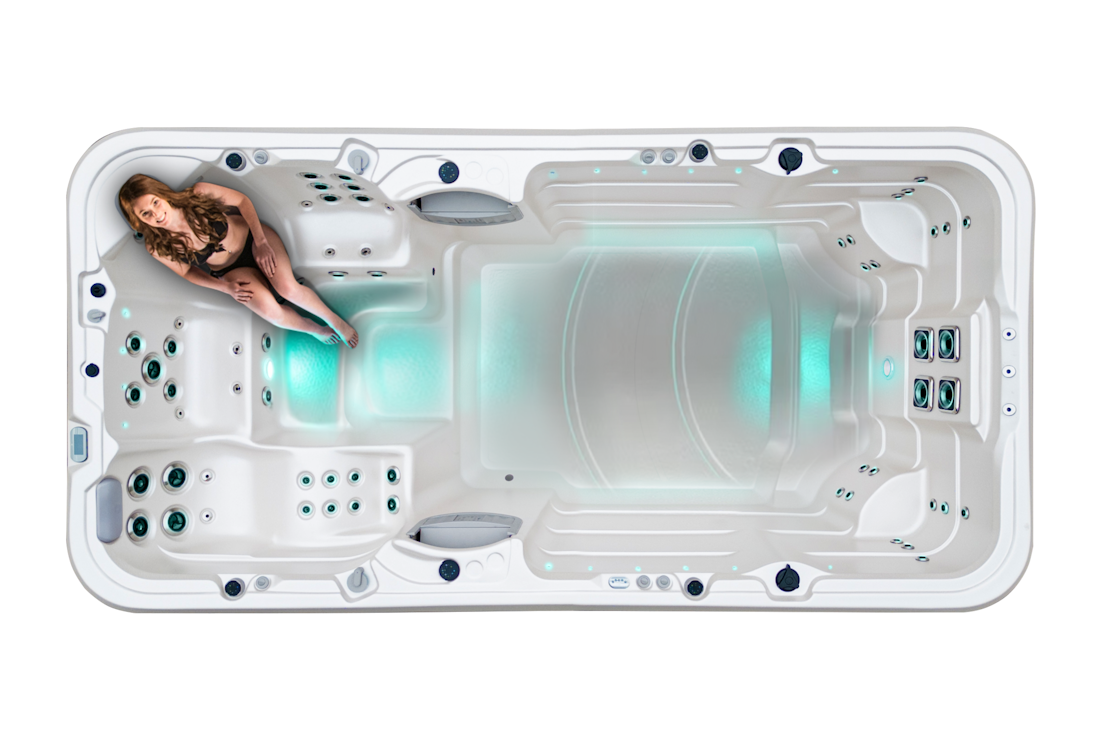

Back massage seat

Whether it's lower, middle or upper back the back massage seats in the Aquagym Max™ is designed to reach the entire area. At one time or another, most of us experience discomfort or a tight back, this is where the Aquagym Max™ excels and allows you to just sit back and relax. Proving this swim spa is not just for exercise.

Cool down seat

Crafted for elevated seating to provide a cooling effect or for a shallower seat suitable for children.

Hydroflow™ stainless steel jets (Avanté) (2024 models)

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

Purezone AOS™ Water Care System (2024 Models)

Purezone AOS™ is an auto-cleaning system for spa pools, using UV-Ozone tech to clean water and kill bacteria, making upkeep easier. This system is offered for Vortex™ Spas and Swim Spas starting in 2023. You can buy it with your spa or add it on later.

Hydroglow™ backlit jets and topside controls (Avanté) Aquagym Max

Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.

ClearLift™ Automatic Cover (Optional)

ClearLift™, a patent-pending, motorized system, makes lifting heavy swim spa covers effortless with just a key turn. Each Vortex Spa comes with a durable cover that insulates and blocks dirt, debris, and unsupervised access by kids. Traditional covers are bulky, up to 1m x 2.3m and over 15kg. ClearLift™ offers quick, easy spa access, enhancing your usage and enjoyment. It's available as an optional upgrade.

Premium SpaNet™ controller (2024 models)

The SpaNet SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™.

Hydroglow™ backlit laminar jets (Avanté)

Laminar jets create perfect streams of backlit water giving a gentle visual display. The jets operate independently of the hydrotherapy jets, so they can be turn your spa into an impressive light display in your backyard.

Tranquil water feature

There is nothing more relaxing than the sound of running water. Add a touch of light and you have created the perfect sanctuary to be rested and mindful.

Drink holder and optional speaker holder

It’s important to stay hydrated while in your spa. Our backlite coasters illuminate your drink and help reduce accidental spills. Included in Avante upgrade.

Hydroglow™ perimeter and cabinet lighting (Avanté)

The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.

Automatic aromatherapy dispenser (Avanté)

Aromatherapy is a holistic treatment that uses natural plant extracts to promote health and well-being and enhance both physical and emotional health. The adjustable Vortex™ Aromatherapy system automatically injects Aromatherapy scent into the spa water.

Spa health indicator light (2024 models)

The Vortex™ Spa health indicator light is designed to communicate the spa’s condition to spa user without having to lift the cover. The indicator lights up blue to show it is at the correct temperature, red to indicate a water temperature fluctuation over 5°C, or a fault.

SpaNet™ variable output heater

The SpaNet™ SV Series has a variable output heater. Unlike most controllers, this means when the spa's jet pump is turned on, the heater turns DOWN rather than OFF. This has the benefit of maintaining the spa's temperature while you are using it, rather than cooling it down.

SpaNet™ integrated heat pump interface (Optional)

If you want to save up to 75% on your spa heating cost, you can choose the optional SpaNet™ Hybrid Heat Pump. This integrated system is plug and play with the SV controller.

Audio and Wifi Kit (Optional)

The 2024 Vortex Spas™ WiFi Audio Kit upgrade allows remote spa control and streaming of music or podcasts through high-definition speakers and a subwoofer, all from your smart device.

Contemporary colour palette.

Our contemporary colour palette is hand selected from the latest home design fashions. Created to please those with the most discerning tastes looking for intelligent colour solutions.

EXPLORE 360° VIEW

View in Home

Customise

Shell Colours

Gypsum

Sterling Silver

Pearl Shadow

Cabinet Colours

Coastal Grey

Chocolate

Natural

*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.

Compare models

The Aquagym Max™ comes in eight variations. There are two hights for each model, 1.3 or 1.5M. Each has exactly the same seating layout and features. However, the swim resistance zone has additional jets in the Pro, Pro+ and Extreme.

Note: The electrical requirements for each model are: Plunge 15amp, Pro and Pro+ 32amp, and Extreme 45amp.

Aquagym Max Plunge™

The Aquagym Max Plunge™ is perfect for family fun and ideally suited for standing fitness and aquasize for those who want to keep fit or recover. If you want to swim, the Pro, Pro+ or Extreme could be better suited for you, depending on your swimming ability.

No swim jets

1 pump

No Swim jets

Aquagym Max Pro™

The Aquagym Max Pro™ is a step up from the Plunge with the added resistance of two powerful 150mm swim jets creating a current strong enough to swim, walk or jog against. This model is ideal for up to intermediate level swimming. More advanced swimmers may want to go for the Pro+ or Extreme models.

2 swim jets

2 pumps

1,200 lpm

2 Swim jets

Aquagym Max Pro Plus™

Powered by three pumps, the Pro+ adds another level of resistance to your workout with three 150mm swim jets to step up your training. This model is perfect for every swimmer from beginner up to advanced as well as water joggers and those using aquatic fitness.

3 swim jets

3 pumps

1,800 lpm

3 Swim jets

Aquagym Max Extreme™

The most powerful of the Aquagym Max™ models, the Extreme adds some serious resistance to your swim training regime with four swim jets for advanced fitness training.

4 swim jets

4 pumps

2,400 lpm

4 Swim jets

Compare Aquagym Max™ depth

The Aquagym Max™ swim spa is now available with extra depth. You can select the standard water depth of 1.3 metres or the 1.5 metre extra deep Hydrozone XD™ Swim Spa. Taller people or those who would like a deeper pool for swim or play, should seriously consider this option.

Aquagym Max™ 1.3m

The 1300mm deep model has the same seating configuration as the 1500mm deep XD model and boasts these advantages:

Less water so it costs less to heat and maintain

Lower price

Easier Access

1.3m deep

Aquagym Max™ 1.5m

The XD model has the same seating configuration as the 1300mm deep model but the 1500mm deep XD upgrade provides an added 200mm of of depth and is ideal for those who:

Are above average in height and are an average to athletic swimmer

Are above average height and are focused on vertical aquatic fitness

Have children that love doing bombs

1.5m deep

Why Choose an Avanté Upgrade

Upgrade to the Aquagym™ Swim Spa Avanté and take your spa experience to the next level with a range of features designed for added comfort and superior luxury. The Avanté model brings together a collection of Vortex™ Spas’ most popular upgrades which, when purchased together, offers significant savings.

	Aquagym Max™ Swim Spa Standard	Aquagym Max™ Swim Spa Avanté
60-day money-back guarantee If not 100% satisfied with your purchase, pay the return and we'll give your money back. Terms and conditions apply.
10-year Vortex Platinum Shell Warranty You can replace many components on a spa, but not the shell. We've put our money where our mouth is. We stand behind every spa and swim spa we sell with our amazing 10 year shell warranty.
ThermoLock™ high-density locking cover Every Vortex Spa comes with a custom fitted, high density foam locking cover.
Purezone™ ozone automatic water clarifier The Water Clarifier uses ozone technology to oxidize and remove micro organics and metals that are smaller than 5 microns resulting in the clearest water available.
Hydroglow™ LED flood light This powerful LED flood light does the heavy lifting to illuminate your spa at night.
Premium SpaNet™ controller This gives you total control from either inside or outside the spa. Turn your lights on/off, change colour and colour modes to fit your mood. Adjust the temperature to your desired comfort levels. Turn the jets or the air bubbles on/off to get the massage you desire.
Purezone™ UV-C automatic water purifier The UV-C technology found in the Purezone™ system is not new. In fact you will find it purifying drinking water and public swimming pools all around the world. However, Vortex Spas™ have pioneered it's use in spa pools. UV sterilization kills 99.9% of water borne viruses and bacteria, including the hard to reach Giardia and Cryptosporidium viruses.	—
ThermoLock™ dual layer Insulation This dual layer insulation system ensures that not only the water in the spa is insulated, but also the water in the pipework. This option adds a higher level of heat retention than Vortex™ Spas' standard Thermolock™ Perimeter insulation.	—
Hydroflow™ stainless steel jets Hydroflow jets use bearing-less technology to make them the most advanced spa jet on the market.	—
Hydroglow™ backlit jets and topside controls Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.	—
Hydroglow™ perimeter and cabinet lighting The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.	—
Hydroglow™ illuminated drink holders Backlit drink holders are functional and beautiful. Illuminated drinks bring a special feel to night-time spas.	—
Hydroglow™ backlit laminar jets They offer another level of aesthetic beauty. Working independently from the hydrotherapy jets they turn your spa into the perfect garden water feature.	—

Specifications

Detailed specifications for the Aquagym Max™ swim spa.

Specification Sheet

4.49 m

2.31 m

	Plunge	Pro	Pro Plus	Extreme	Plunge XD	Pro XD	Pro Plus XD	Extreme XD
Dry weight	1000 kg	1058 kg	1105 kg	1150 kg	085 kg	1135 kg	1185 kg	1215 kg
Filled weight (including cover)	7075 kg	7133 kg	7280 kg	7325 kg	8874 kg	8924 kg	8974 kg	9004 kg
Lift weight	1550 kg	1550 kg	1550 kg	1550 kg	1650 kg	1650 kg	1650 kg	1650 kg
Intuitive spa controller	SV3	SV3	SV3	SV4	SV2	SV3	SV3	SV4
Programmable circulation pump	1	1	1	1	1	1	1	1
Jet pumps	1	2	3	4	1	2	3	4
Variable speed airblower	Optional	1	1	1	Optional	1	1	1
Variable output heater	3kW	6kW	6kW	6kW	3kW	6kW	6kW	6kW
Electrical requirements	32 amps	32 amps	32 amps	40 amps	15 amps	32 amps	32 amps	40 amps
Water capacity	6136 litres	6136 litres	6136 litres	6136 litres

Jet Layout

The Aquagym Max™ swim spa features a range of hydrotherapy jets for a relaxing massage and fitness training.

Standard Jets

4 x 150mm Swim Jets

3 x 127mm Single Spinning Jetss

2 x 127mm Directional Jets

8 x 75mm Directional Jets

10 x 75mm Single Spinning Jets

16 x 50mm Twin Spinning Jets

24 x 50mm Directional Jets

14 x 40mm Air Jets

Aquagym Max™

Aquagym Max™ Extreme™ model shown.

Jet Types

Available jet types for this model.

150mm Swim Jet

The 150mm swim jets create a current strong enough to swim against. You can even personalise your work out by adjusting the pressure on each jet individually.

127mm Single Spinning Jets

This large single spinner gives a rotating massage effect similar to a masseuse using their thumb in a kneading fashion. They provide a very effective back massage.

127mm Directional Jet

The 127mm directional jets provide an intense, pressure point massage. These are particularly effective at treating knotted muscles in the back.

75mm Directional Jet

This style of directional jets gives a targeted but less intense pressure point massage. It's very effective for a more prolonged treatment of tired muscles.

75mm Single Spinning Jet

The 75mm single spinning jets offer a similar effect as the larger 127mm variety but given their smaller size, the kneading effect is lighter and more focused.

50mm Twin Spinning Jet

The 50mm twin spinner offers a pulsating massage effect ideally suited for neck and shoulder therapy or as part of a shiatsu style massages treatment when teamed with 50mm directional jets.

50mm Directional Jet

These jets are usually used in banks of 8 or more jets and are often coupled with 50mm twin spinners to give a shiatsu style pressure point massage therapy.

40mm Air Jet

As the name implies, the 40mm air jets emit an air stream as opposed to a water stream. These are almost always used under the legs and buttocks to provide a relaxing soft tissue massage treatment.

Warranties

The Vortex Spas™ range of spas is covered by comprehensive warranty agreements providing peace of mind when you purchase Vortex Spas™.

Download Warranty

Lifetime Warranty

Vortex Permaframe™ is guaranteed for life against a loss of structural integrity leading to the spa being inoperable.

10 Year Non Pro rata Structural Warranty

All Vortex Spas™ are offered with a 10 year 'non pro-rata' shell structure warranty. This means that if the spa's shell cracks resulting in water loss, for a period of 10 years, the spas shell shall be replaced.

5 Year Non Pro rata Acrylic surface warranty

All Vortex Spas™ are offered with a 5 year 'non pro-rata' acrylic surface warranty. This means that if the acrylic surface blisters resulting in water loss for a period of 5 years, the spa's shell shall be replaced.

5 Year Plumbing, Heater & Jet Warranty

The plumbing system of all Vortex Spas™ is warranted against leaking for 5 years. The heater and jets of all Vortex Spas™ are warranted against defects for a period of 5 years.

2 Year Pump & Equipment Warranty

The circulation pump, jet pump(s) and electronic control system of all Vortex Spas™ are warranted against defects for 2 years. *Please consult your local store for complete warranty details.

Similar Swim Spas

You may want to check out these similar swim spas to compare features and find the right spa for you and your family.

	Vortex Aquagym Max™	Vortex Aqualounge™	Vortex Aquagym™
Seating	4	4	4
Dimensions	4.49 x 2.31 x 1.3/1.5m	3.98 x 2.31 x 1.2m	3.98 x 2.31 x 1.2m
Volume	6136/7750 ltr	4717 ltr	5700 ltr
Jets	Up to 81	Up to 81	Up to 59
Weight (Full)	7075-9004 kg	5,772 kg	6,855 kg
