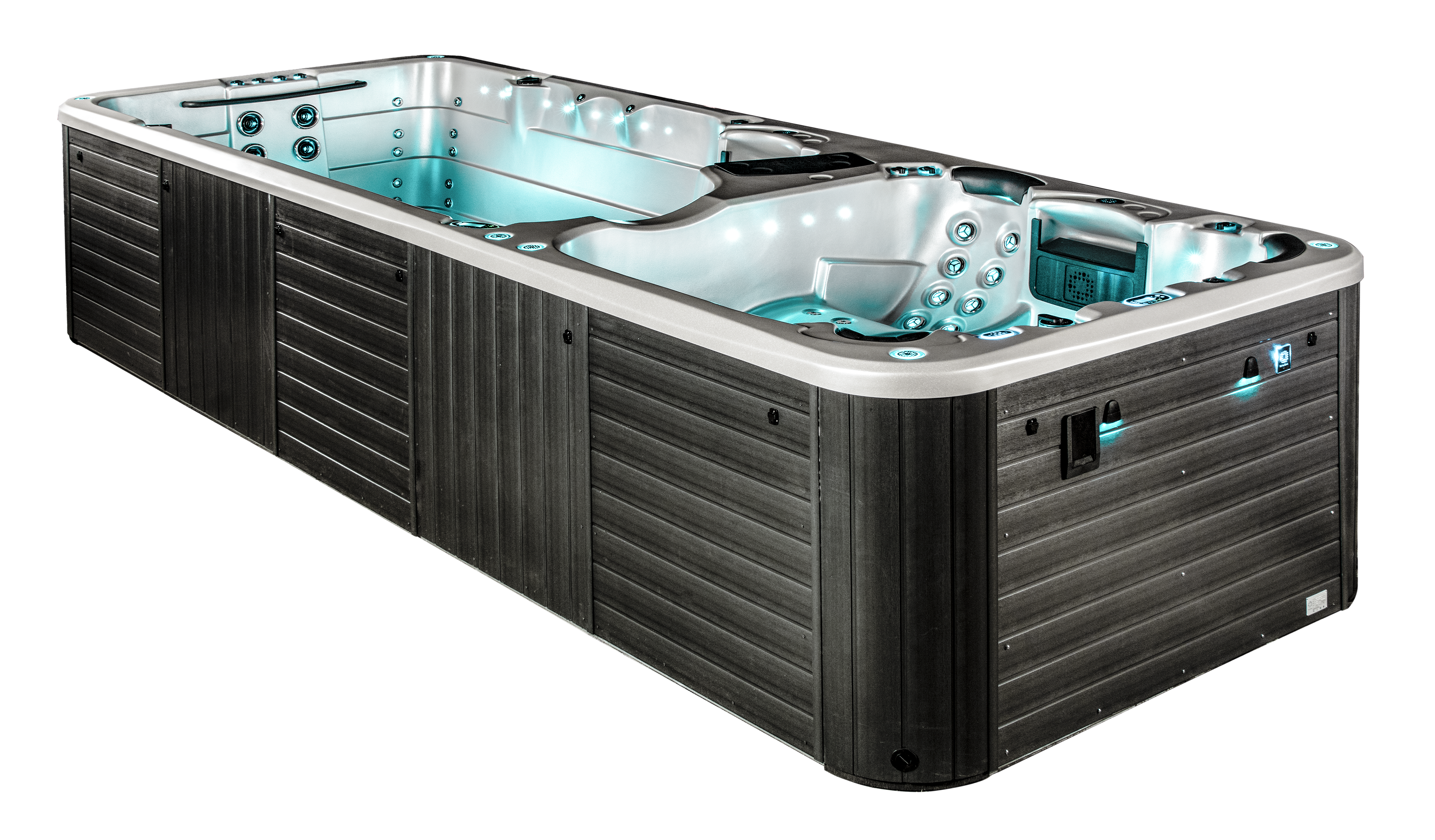

Vortex Hydrozone™

Seating 5 to 7
Dimensions 5.90 x 2.30 x 1.3/1.5m
Jets Up to 68

Product
Features
3D Viewer
Specification
Warranties

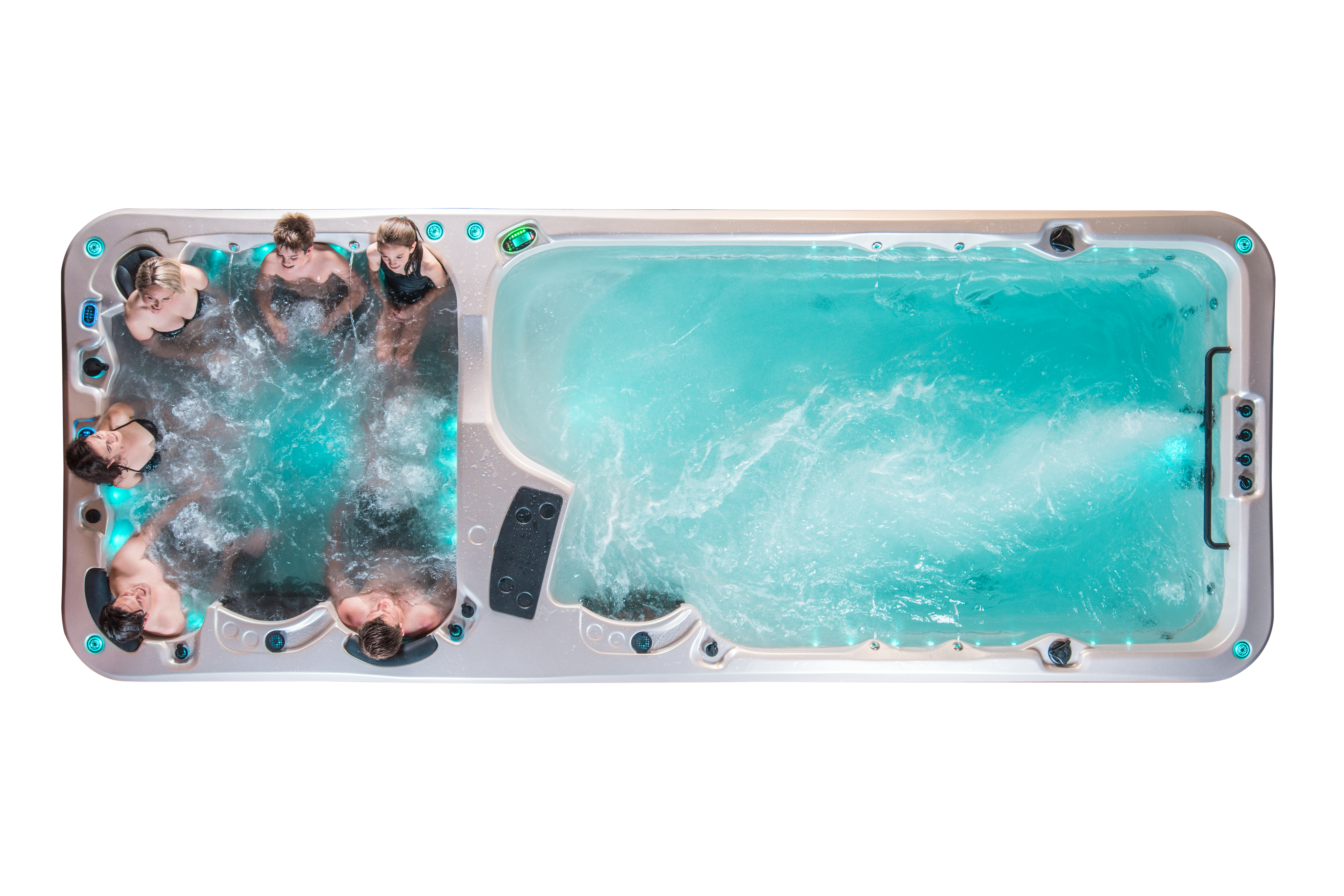

Why choose a Hydrozone™?

There is no doubt that the Vortex Hydrozone™ gives you the best of both worlds, combining two completely separate zones to create the multifunctional Hydrozone™ swim spa. At one end you can luxuriate in Vortex’s hydrotherapy-focused spa pool, and at the other enjoy exercise and family fun in the spacious swim spa.

Features

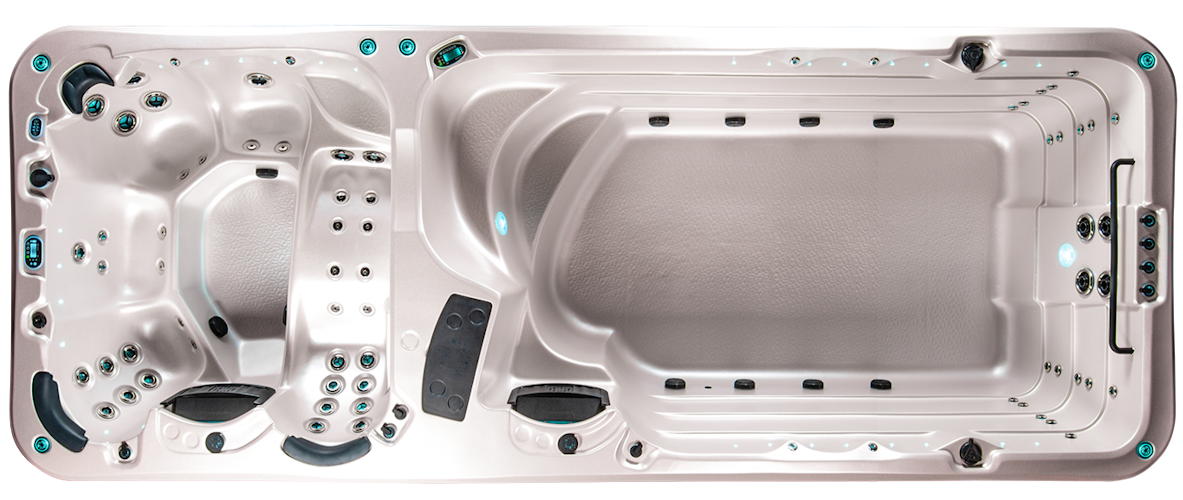

The water in the two zones is kept completely separate by an internal wall. This feature allows you to set different jet pressures, water temperatures, and other in-spa functions for the spa area and the plunge pool - even when you are using both at the same time.

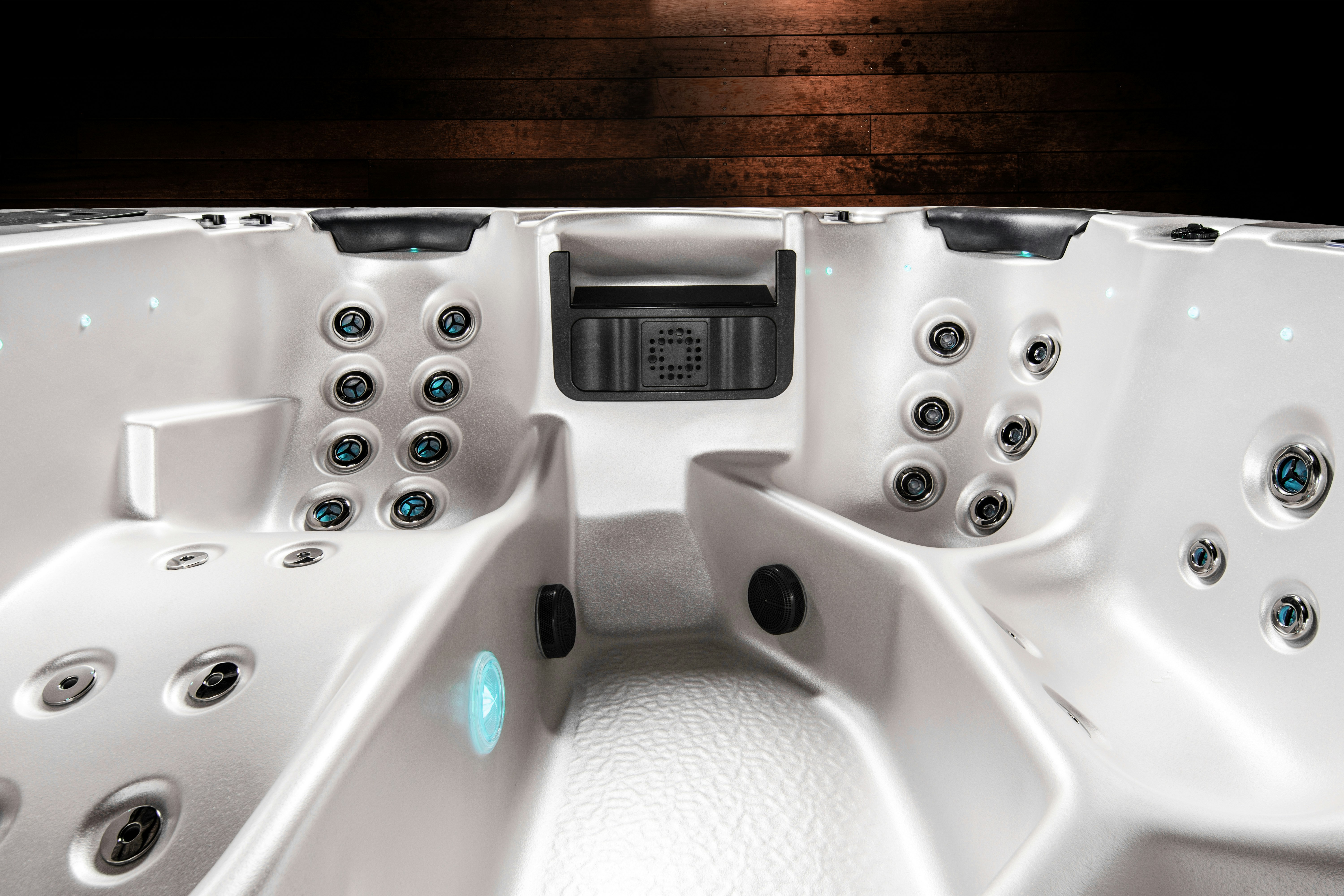

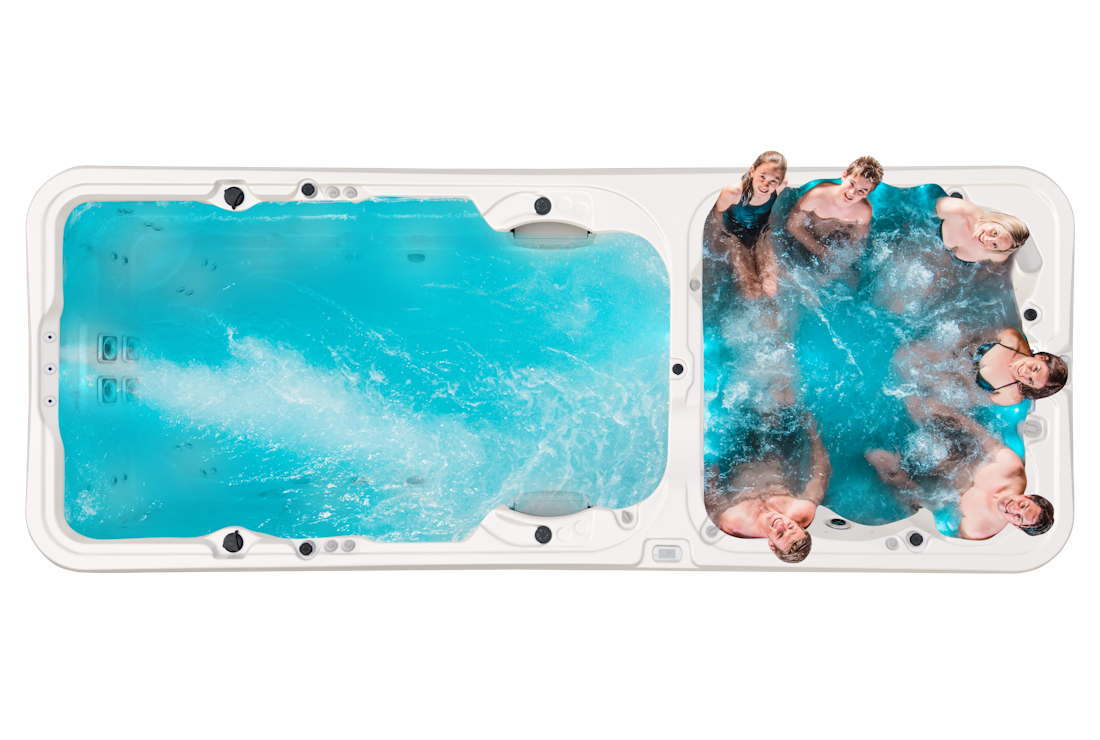

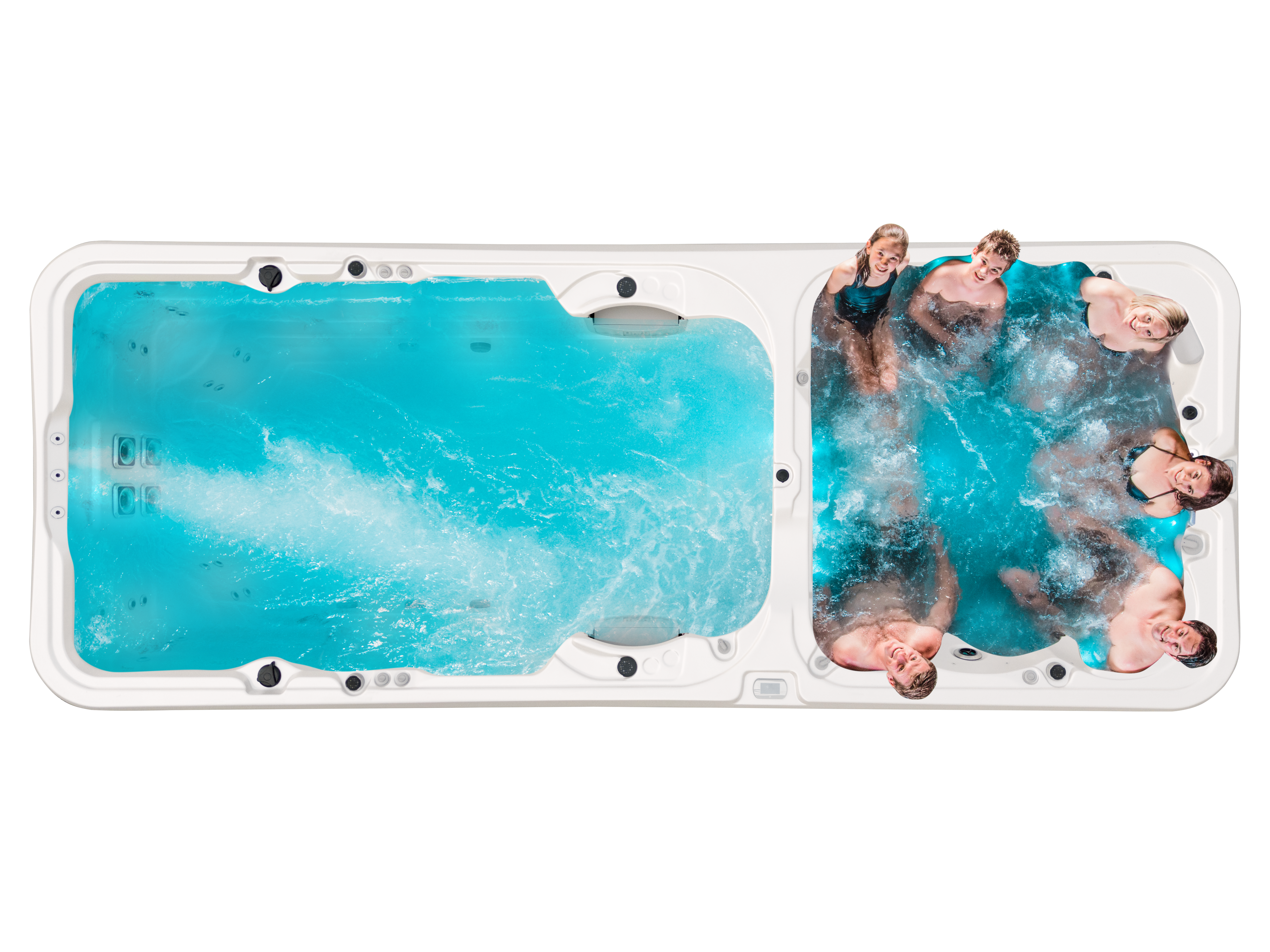

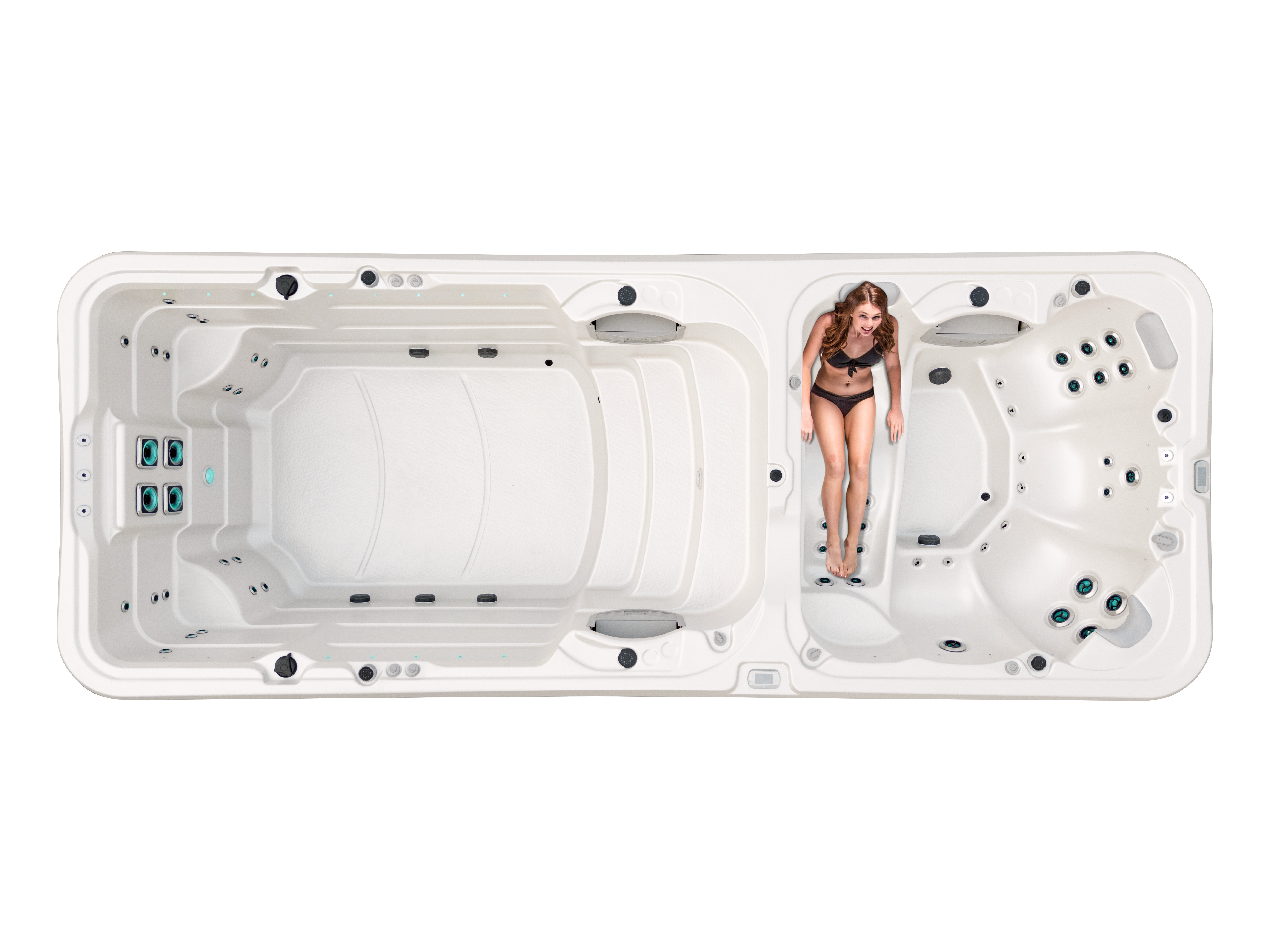

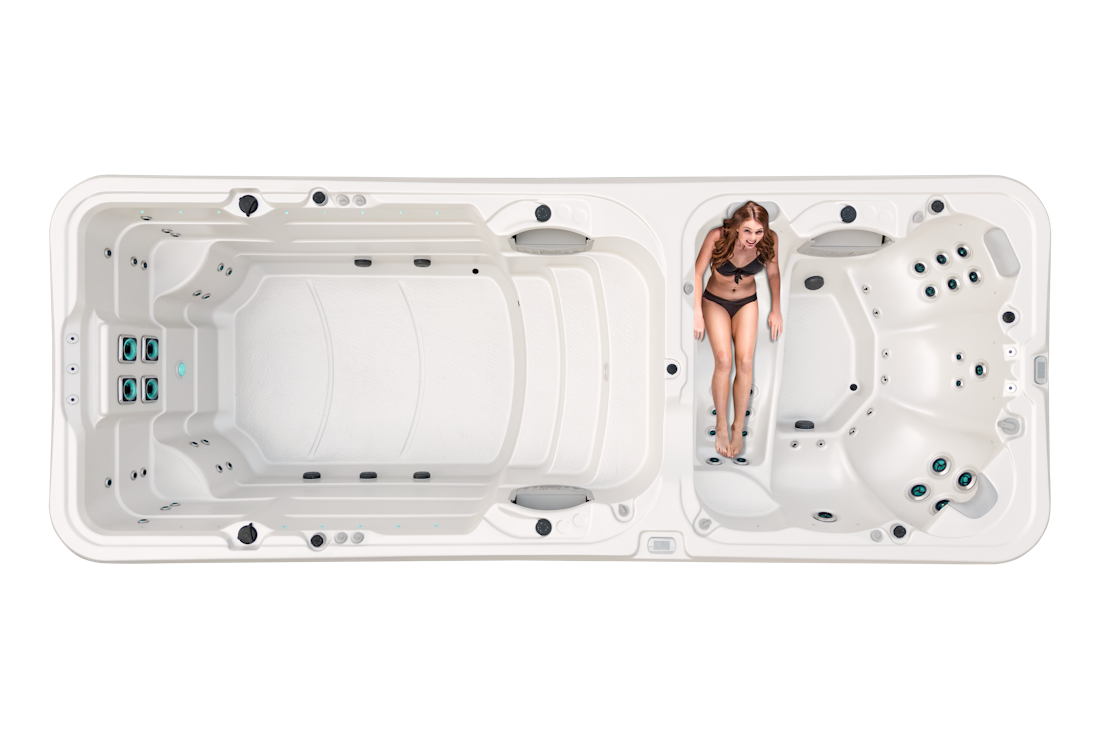

Hydrotherapy Seating For Five

The dual-zoned Hydrozone™ has five hydrotherapy seats in the spa end and the two step seats in the swim end.

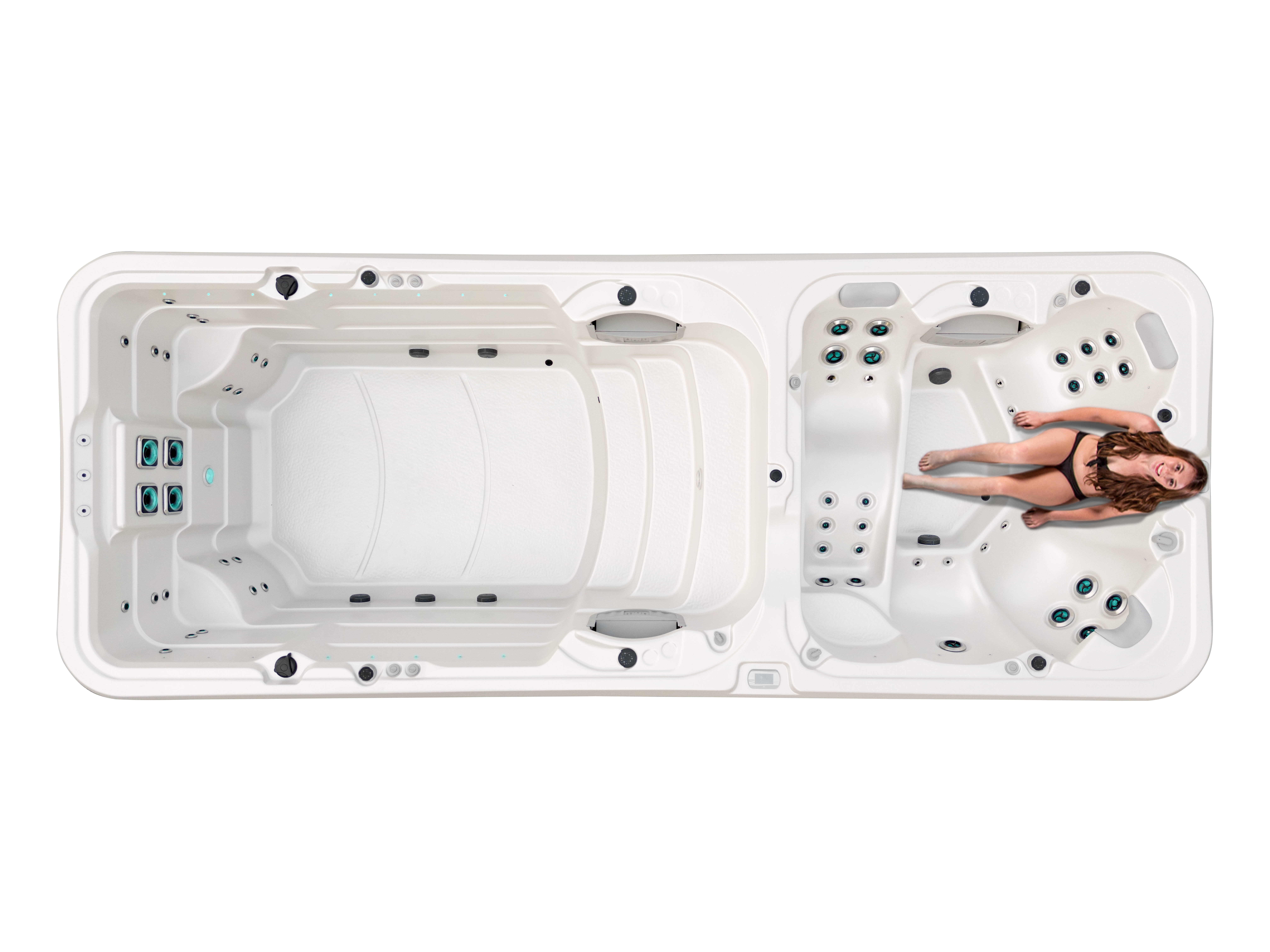

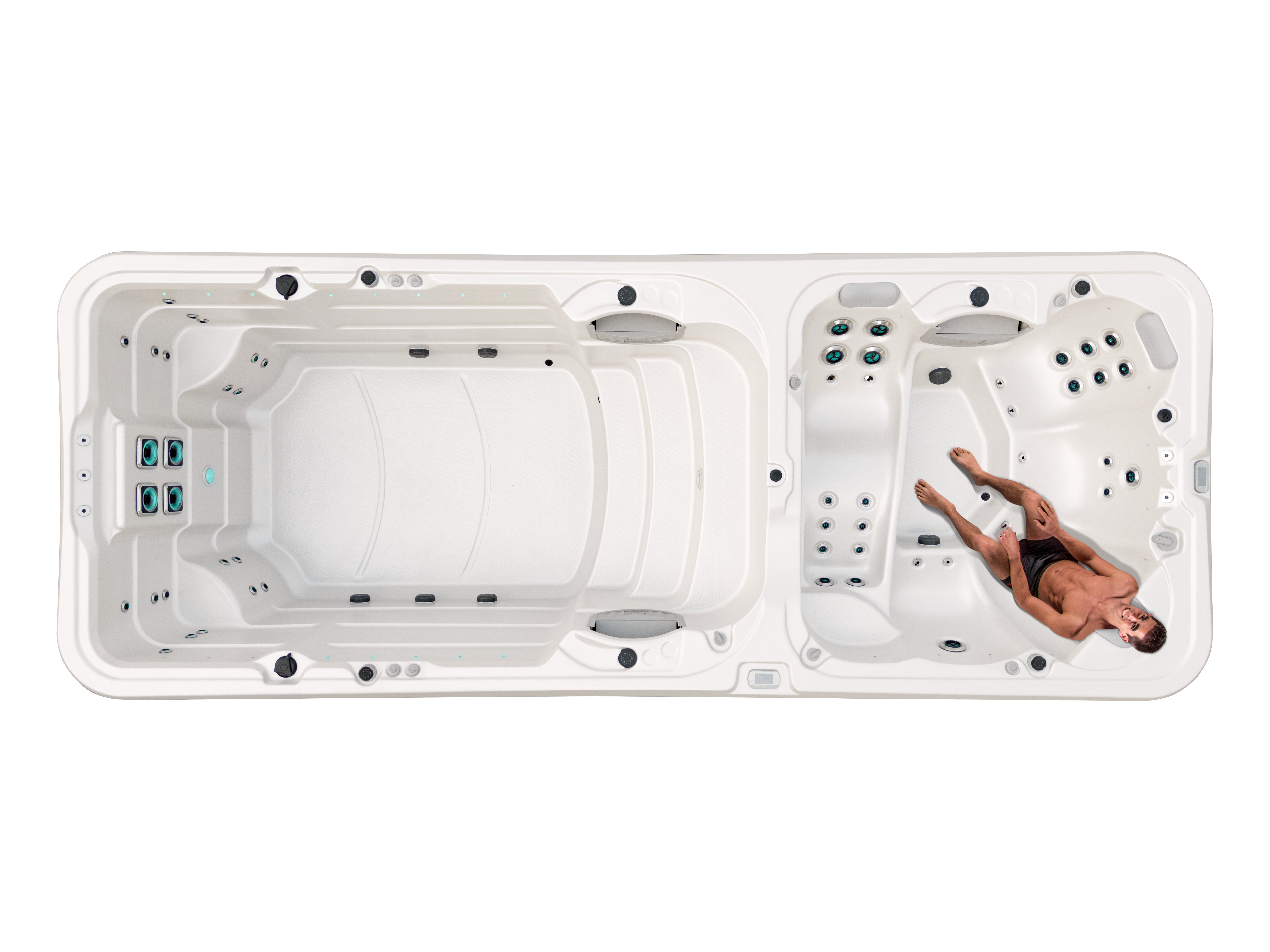

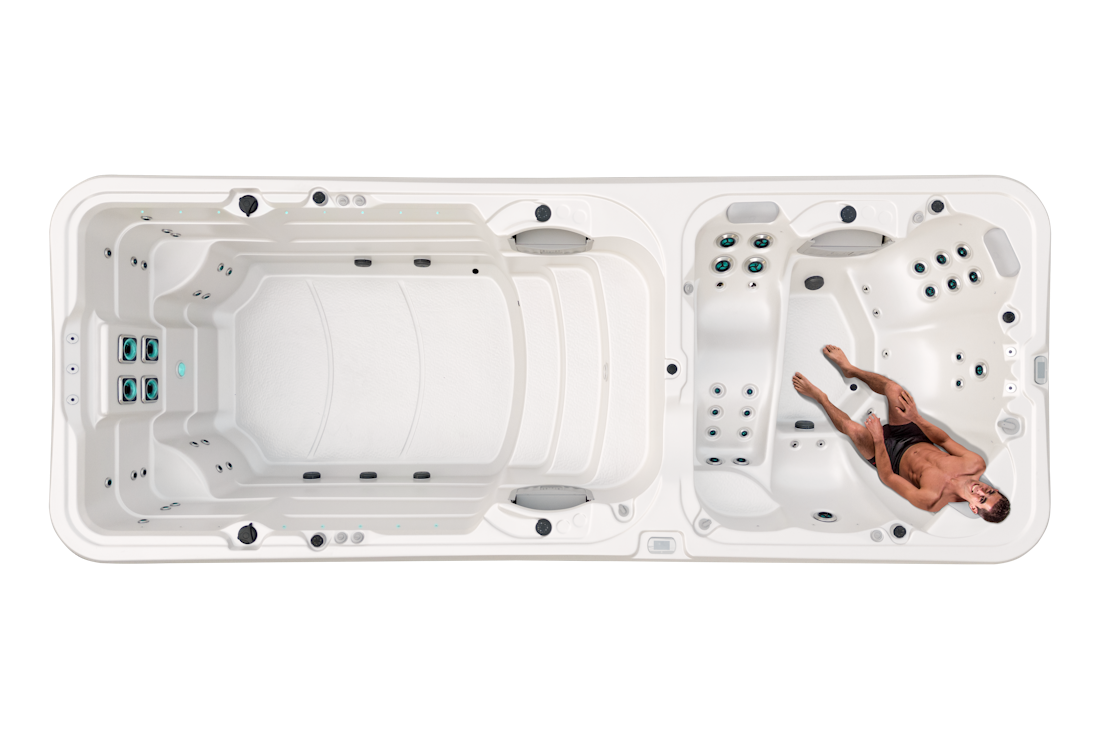

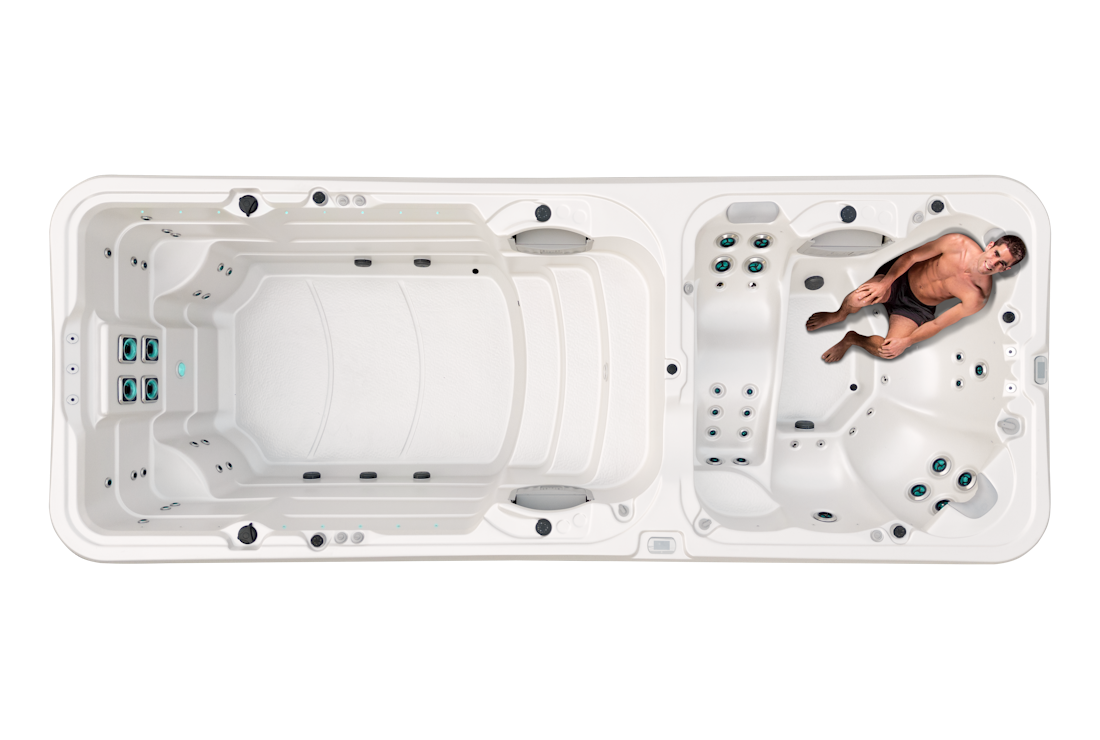

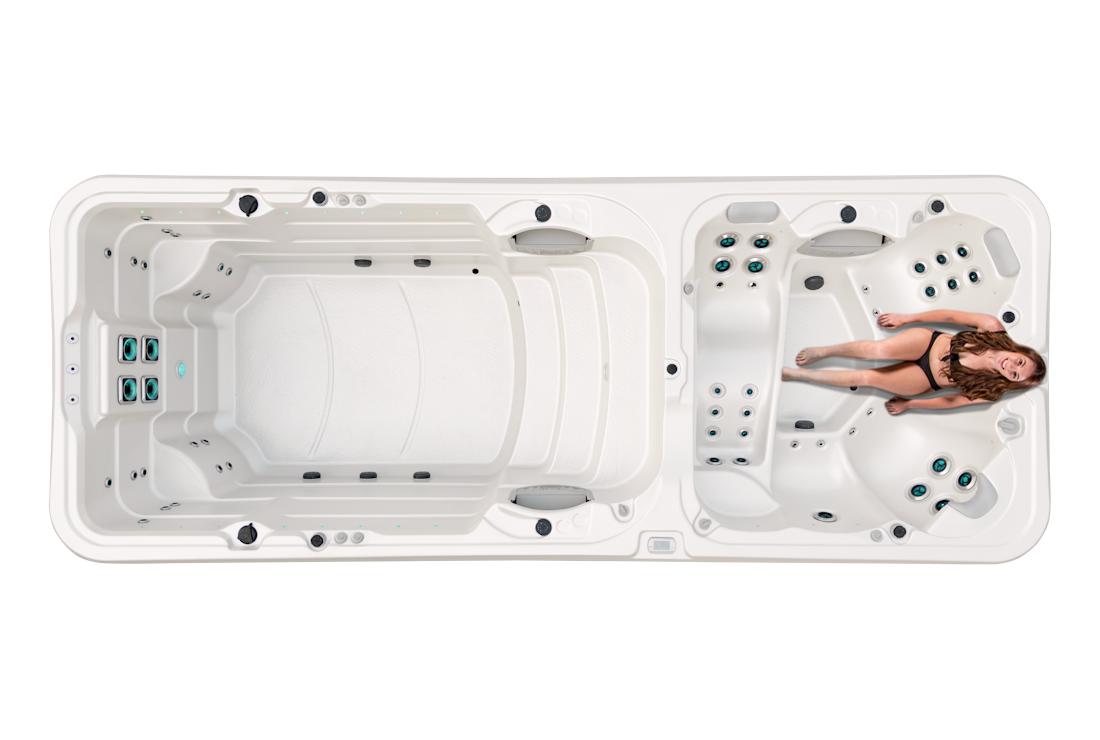

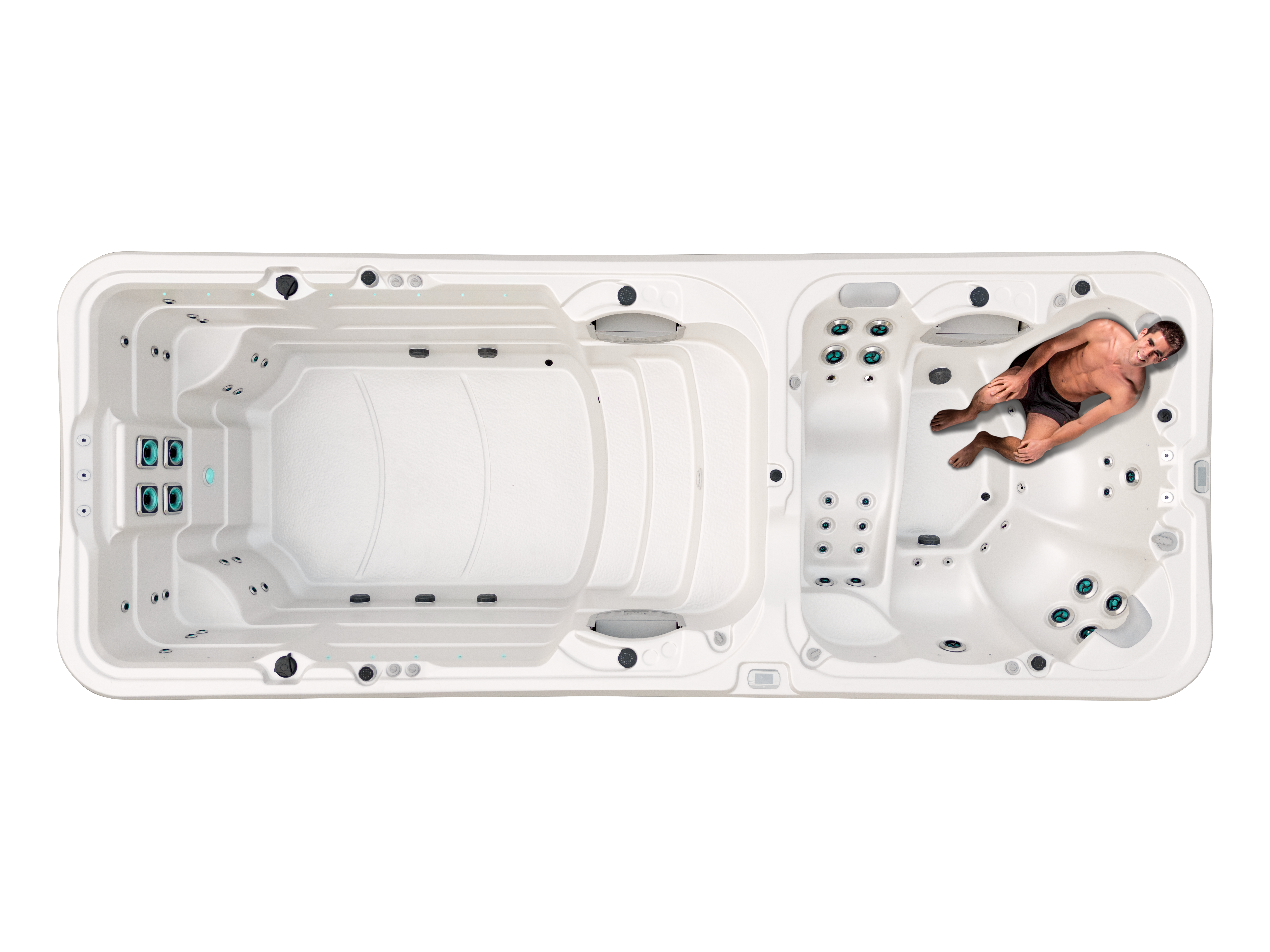

Ergonomic Lounger with Foot Massage

The Hydrozone™ Swim Spa's hydrotherapy lounger combines upper and lower back massage with fantastic foot massage to bring you a supreme hydrotherapy experience.

Neck and Shoulder Therapy Seat

The famous Vortex™ neck and shoulder therapy seat has downward facing 50mm jets specifically designed to massage the back of the neck and the top of the shoulders.

Two Back Massage Seats

A back hydromassage seat with a unique array of jets specifically targeting parts of the lower and upper back.

One Child / Cool-Down Seat

Designed to seat you in a higher position to allow you to cool down, or as shallower seat for a child.

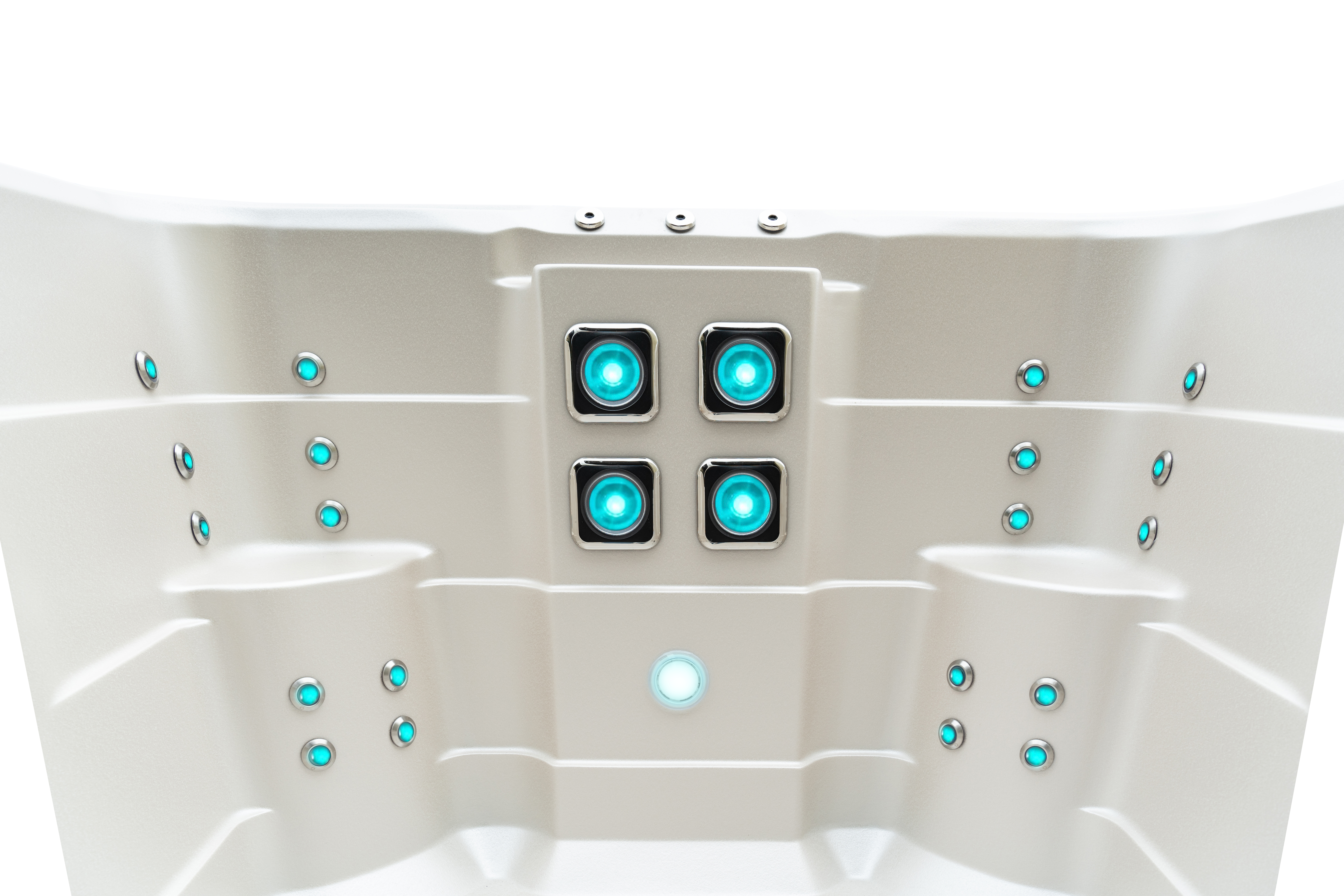

Up To Four Powerful Vortex™ Swim Jets

From no swim jets in the Plunge™ to four high-volume swim jets and standing cool-down corners in the Extreme™, you can choose the perfect model for your fitness needs.

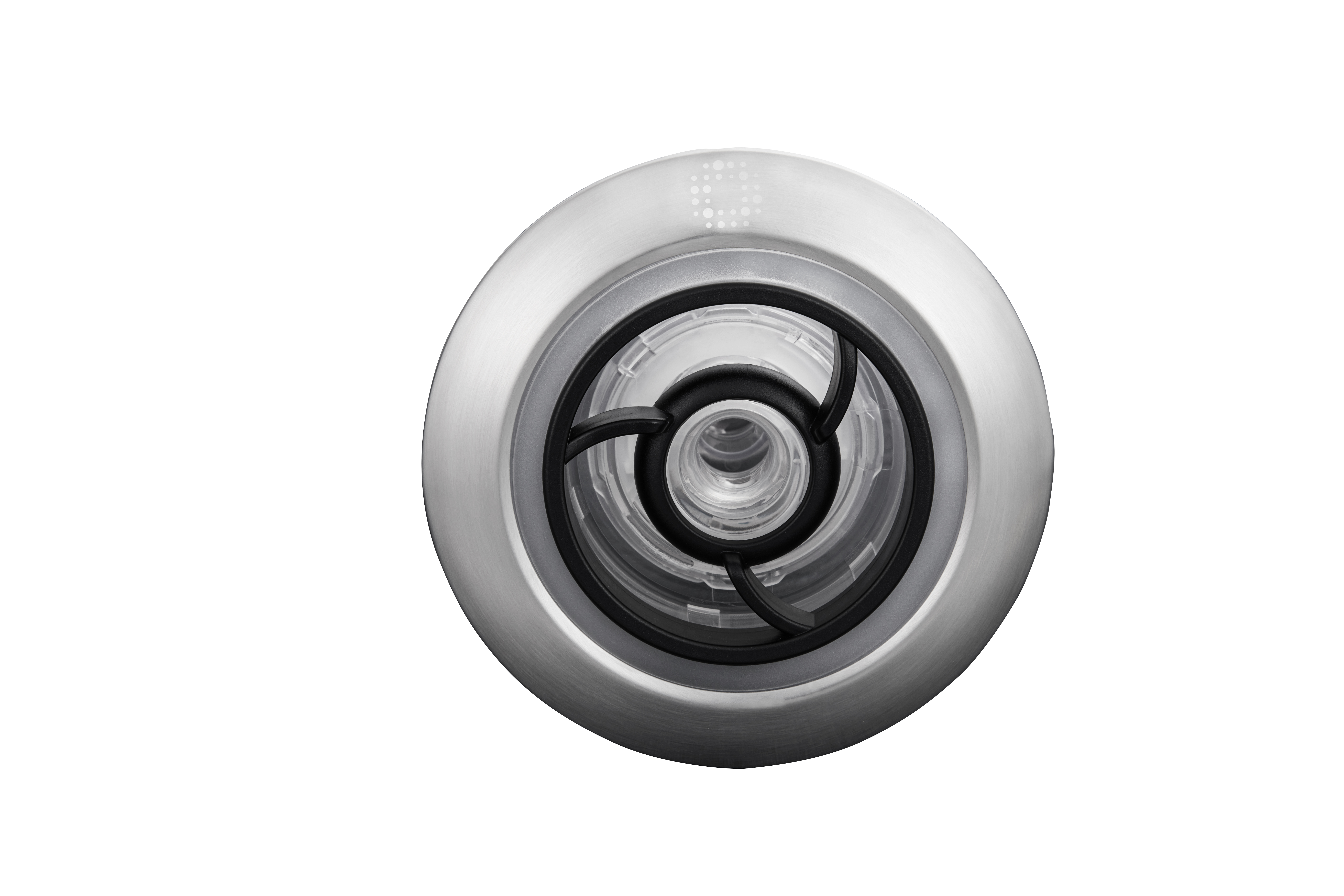

Hydroflow™ stainless steel jets (Avanté) (2024 models)

Hydroflow™ Stainless Steel jets use the famous Vortex™ jet design which provides a premium massage.

Hydroglow™ backlit jets and topside controls (Avanté) Hydrozone

Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.

Purezone AOS™ Water Care System (2024 Models)

Purezone AOS™ is an auto-cleaning system for spa pools, using UV-Ozone tech to clean water and kill bacteria, making upkeep easier. This system is offered for Vortex™ Spas and Swim Spas starting in 2023. You can buy it with your spa or add it on later.

ClearLift™ Automatic Cover (Optional)

ClearLift™, a patent-pending, motorized system, makes lifting heavy swim spa covers effortless with just a key turn. Each Vortex Spa comes with a durable cover that insulates and blocks dirt, debris, and unsupervised access by kids. Traditional covers are bulky, up to 1m x 2.3m and over 15kg. ClearLift™ offers quick, easy spa access, enhancing your usage and enjoyment. It's available as an optional upgrade.

Premium SpaNet™ controller (2024 models)

The SpaNet SV Series controller is designed to maximise energy savings and deliver the lowest possible daily operating cost for your spa using PowerSmart™ technology like Dynamic Thermal Tuning and SmartFiltration™.

Hydroglow™ backlit laminar jets (Avanté)

Laminar jets create perfect streams of backlit water giving a gentle visual display. The jets operate independently of the hydrotherapy jets, so they can be turn your spa into an impressive light display in your backyard.

Tranquil water feature

There is nothing more relaxing than the sound of running water. Add a touch of light and you have created the perfect sanctuary to be rested and mindful.

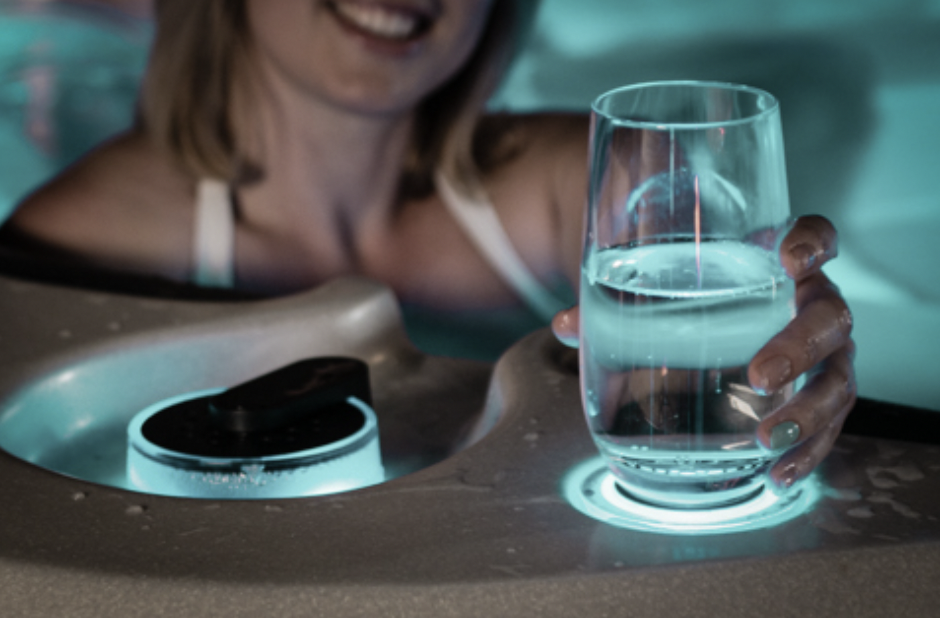

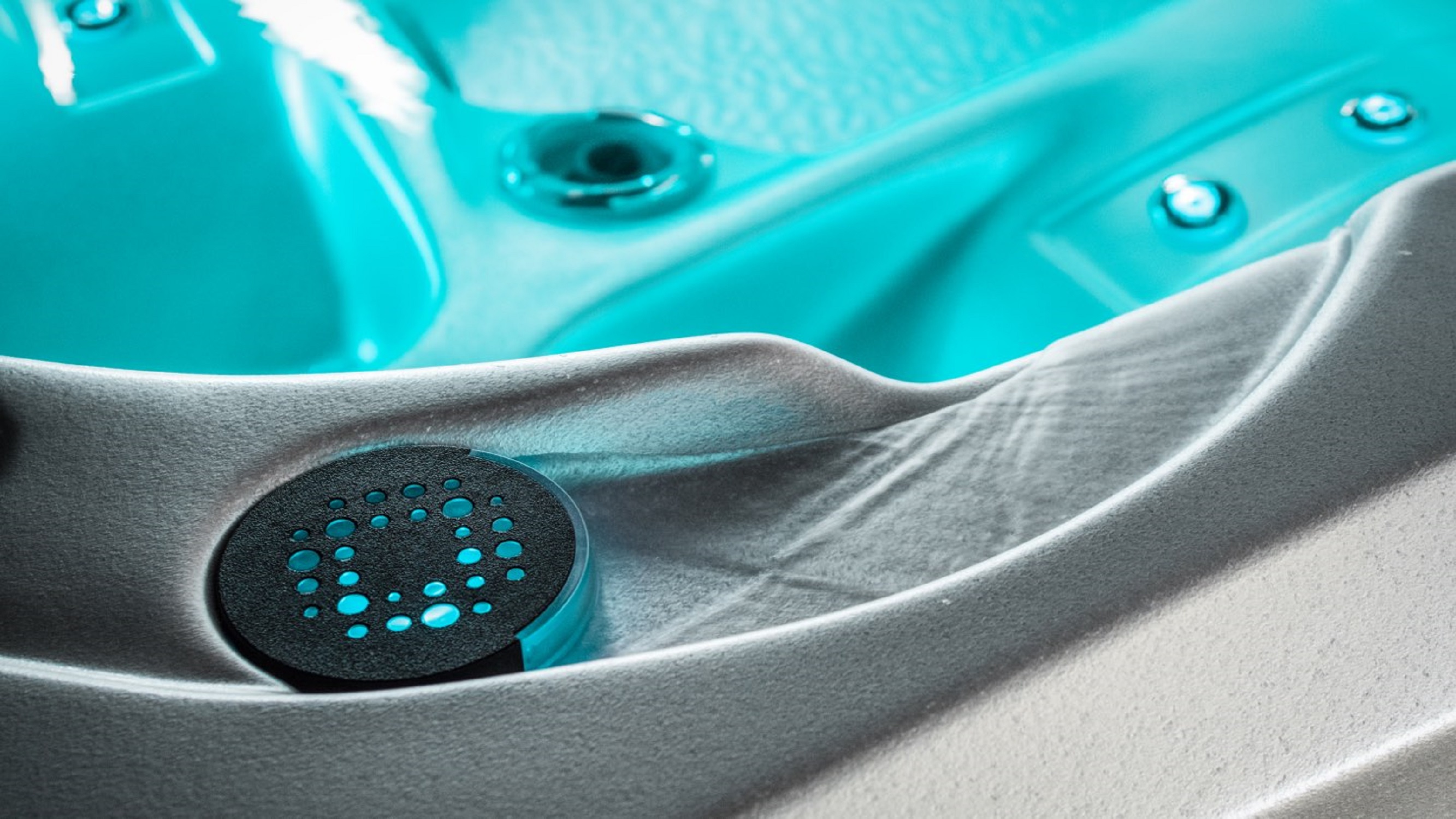

Drink holder and optional speaker holder

It’s important to stay hydrated while in your spa. Our backlite coasters illuminate your drink and help reduce accidental spills. Included in Avante upgrade.

Hydroglow™ perimeter and cabinet lighting (Avanté)

The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.

Automatic aromatherapy dispenser (Avanté)

Aromatherapy is a holistic treatment that uses natural plant extracts to promote health and well-being and enhance both physical and emotional health. The adjustable Vortex™ Aromatherapy system automatically injects Aromatherapy scent into the spa water.

Spa health indicator light (2024 models)

The Vortex™ Spa health indicator light is designed to communicate the spa’s condition to spa user without having to lift the cover. The indicator lights up blue to show it is at the correct temperature, red to indicate a water temperature fluctuation over 5°C, or a fault.

SpaNet™ variable output heater

The SpaNet™ SV Series has a variable output heater. Unlike most controllers, this means when the spa's jet pump is turned on, the heater turns DOWN rather than OFF. This has the benefit of maintaining the spa's temperature while you are using it, rather than cooling it down.

SpaNet™ integrated heat pump interface (Optional)

If you want to save up to 75% on your spa heating cost, you can choose the optional SpaNet™ Hybrid Heat Pump. This integrated system is plug and play with the SV controller.

Audio and Wifi Kit (Optional)

The 2024 Vortex Spas™ WiFi Audio Kit upgrade allows remote spa control and streaming of music or podcasts through high-definition speakers and a subwoofer, all from your smart device.

Contemporary colour palette.

Our contemporary colour palette is hand selected from the latest home design fashions. Created to please those with the most discerning tastes looking for intelligent colour solutions.

EXPLORE 360° VIEW

View in Home

Customise

Shell Colours

Gypsum

Sterling Silver

Pearl Shadow

Cabinet Colours

Coastal Grey

Chocolate

Natural

*Disclaimer: The 3D and AR models may show additional extras. Actual colours may differ from renders.

Compare models

The Hydrozone™ comes in four variations. Each model has exactly the same seating layout and features. However, the swim resistance zone has additional jets in the Pro, Pro+ and Extreme.

Note: The electrical requirements for each model are: Plunge 15amp, Pro and Pro+ 32amp, and Extreme 45amp.

Hydrozone Plunge™

The Hydrozone Plunge™ is perfect for family fun and ideally suited for standing fitness and aquasize for those who want to keep fit or recover. If you want to swim, the Pro, Pro+ or Extreme could be better suited for you, depending on your swimming ability.

No Swim jets

2 pumps

0 swim jets

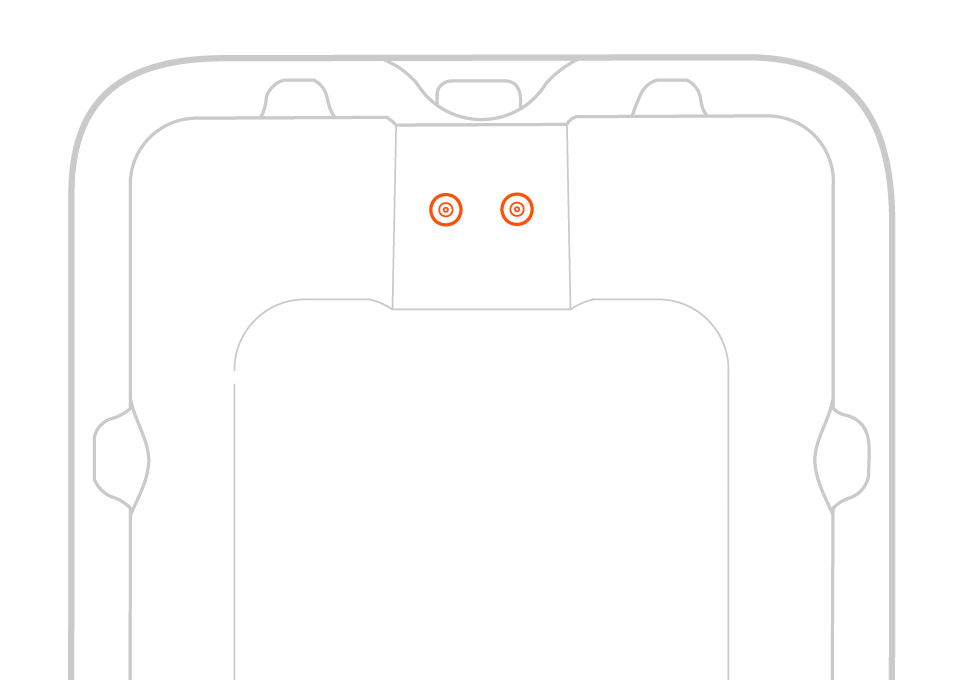

Hydrozone Pro™

The Hydrozone Pro™ is a step up from the Plunge with the added resistance of two powerful 150mm swim jets creating a current strong enough to swim, walk or jog against. This model is ideal for up to intermediate level swimming. More advanced swimmers may want to go for the Pro+ or Extreme models.

2 swim jets

3 pumps

1,800 lpm

2 swim jets

Hydrozone Pro Plus

Powered by three pumps, the Hydrozone Pro+ adds another level of resistance to your workout with three 150mm swim jets to step up your training. This model is perfect for every swimmer from beginner up to advanced as well as water joggers and those using aquatic fitness.

3 swim jets

4 pumps

1,800 lpm

3 swim jets

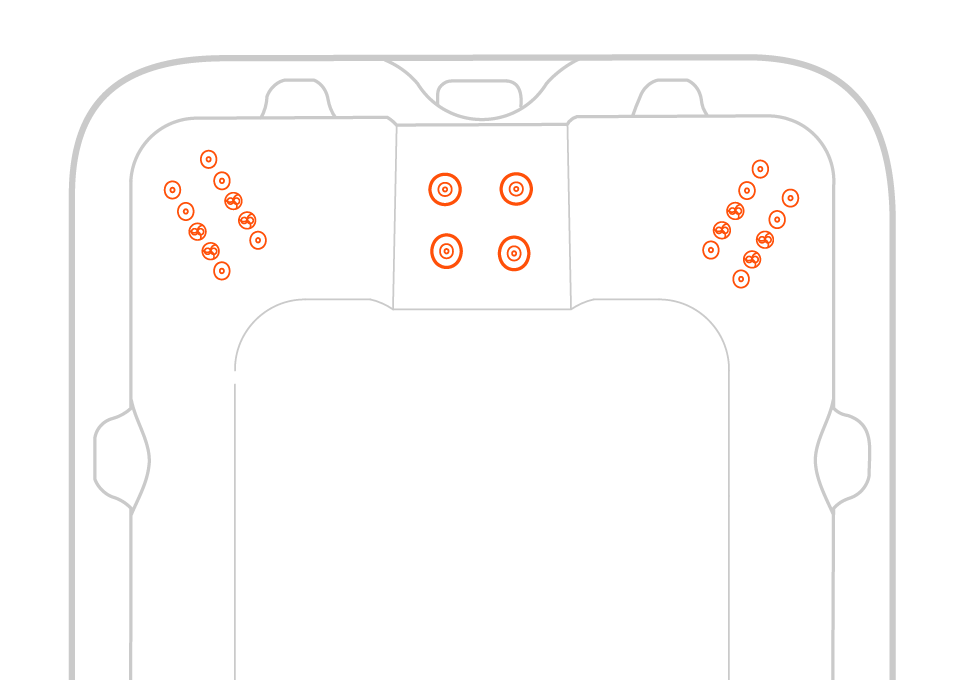

Hydrozone Extreme™

The most powerful of the Hydrozone™ models, the Extreme™ adds some serious resistance to your swim training regime with four swim jets for advanced fitness training.

4 swim jets

5 pumps

2,400 lpm

4 swim jets

Compare Hydrozone™ depth

The Hydrozone™ swim spa is now available with extra depth. You can select the standard water depth of 1.3 metres or the 1.5 metre extra deep Hydrozone XD™ Swim Spa. Taller people or those who would like a deeper pool for swim or play, should seriously consider this option.

Hydrozone™ 1.3m

The 1300mm deep model has the same seating configuration as the 1500mm deep XD model and boasts these advantages:

less water so it costs less to heat and maintain

lower price

easier access

1.3m depth

Hydrozone™ XD 1.5m

The XD model has the same seating configuration as the 1300mm deep model but the 1500mm deep XD upgrade provides an added 200mm of of depth and is ideal for those who:

are above average in height and are an average to athletic swimmer

are above average height and are focused on vertical aquatic fitness

have children that love doing bombs

1.5m depth

Why Choose an Avanté Upgrade

Upgrade to the Hydrozone™ Swim Spa Avanté and take your spa experience to the next level with a range of features designed for added comfort and superior luxury. The Avanté model brings together a collection of Vortex™ Spas’ most popular upgrades which, when purchased together, offers significant savings.

	Hydrozone™ Swim Spa Standard	Hydrozone™ Swim Spa Avanté
60-day money back guarantee If not 100% satisfied with your purchase, pay the return and we'll give your money back. Terms and conditions apply.
10-year Vortex Platinum Shell Warranty You can replace many components on a spa, but not the shell. We've put our money where our mouth is. We stand behind every spa and swim spa we sell with our amazing 10 year shell warranty.
ThermoLock™ high-density locking cover Every Vortex Spa comes with a custom fitted, high density foam locking cover.
Purezone™ ozone automatic water clarifier The Water Clarifier uses ozone technology to oxidize and remove micro organics and metals that are smaller than 5 microns resulting in the clearest water available.
Hydroglow™ LED flood light This powerful LED flood light does the heavy lifting to illuminate your spa at night.
Premium SpaNet™ controller This gives you total control from either inside or outside the spa. Turn your lights on/off, change colour and colour modes to fit your mood. Adjust the temperature to your desired comfort levels. Turn the jets or the air bubbles on/off to get the massage you desire.
Purezone™ UV-C automatic water purifier The UV-C technology found in the Purezone™ system is not new. In fact you will find it purifying drinking water and public swimming pools all around the world. However, Vortex Spas™ have pioneered it's use in spa pools. UV sterilization kills 99.9% of water borne viruses and bacteria, including the hard to reach Giardia and Cryptosporidium viruses.	—
ThermoLock™ dual layer Insulation This dual layer insulation system ensures that not only the water in the spa is insulated, but also the water in the pipework. This option adds a higher level of heat retention than Vortex™ Spas' standard Thermolock™ Perimeter insulation.	—
Hydroflow™ stainless steel jets Hydroflow jets use bearing-less technology to make them the most advanced spa jet on the market.	—
Hydroglow™ jets and topside control lighting Chromotherapy uses colours to create an environment focused on health and harmony. Hydroglow™ backlit jets and topside control lighting provide an adjustable and variable Chromotherapy experience.	—
Hydroglow™ perimeter and cabinet lighting The additional lighting to the water edge and functional outside lighting are included with the perimeter and cabinet lighting package. All lighting is customisable to suit your mood.	—
Hydroglow™ illuminated drink holders Backlit drink holders are functional and beautiful. Illuminated drinks bring a special feel to night-time spas.	—
Hydroglow™ backlit laminar jets They offer another level of aesthetic beauty. Working independently from the hydrotherapy jets they turn your spa into the perfect garden water feature.	—

Specifications

Detailed specifications for the Hydrozone™ swim spa.

Specification Sheet

2.30 m

5.0 m

	Plunge	Pro	Pro Plus	Extreme	Plunge XD	Pro XD	Pro Plus XD	Extreme XD
Dry weight	1380 kg	1431 kg	1480 kg	1530 kg	1450 kg	1500 kg	1531 kg	1580 kg
Filled weight (including cover)	8123 kg	8174 kg	8223 kg	8273 kg	8809 kg	8859 kg	8890 kg	8939 kg
Lift weight	1900 kg	1900 kg	1900 kg	1900 kg	2000 kg	2000 kg	2000 kg	2000 kg
Intuitive spa controller	SV2+SV3	SV2+SV3	SV2+SV3	SV2+SV4	SV2+SV2	SV2+SV3	SV2+SV3	SV2+SV4
Programmable circulation pump	2	2	2	2	2	2	2	2
Jet pumps	1+1	2+1	3+1	4+1	1+1	2+1	3+1	4+1
Variable speed airblower	1	1	1	1	1	1	1	1
Variable output heater	3kW + 3kW	6kW + 3kW	6kW + 3kW	6kW+3kW	6kW+3kW	6kW+3kW	6kW+3kW	6kW+3kW
Electrical requirements	15+32 amps	15+32 amps	15+32 amps	15+40 amps	15+15 amps	15+32 amps	15+32 amps	15+40 amps
Water capacity	6684 litres	6684 litres	6684 litres	6684 litres

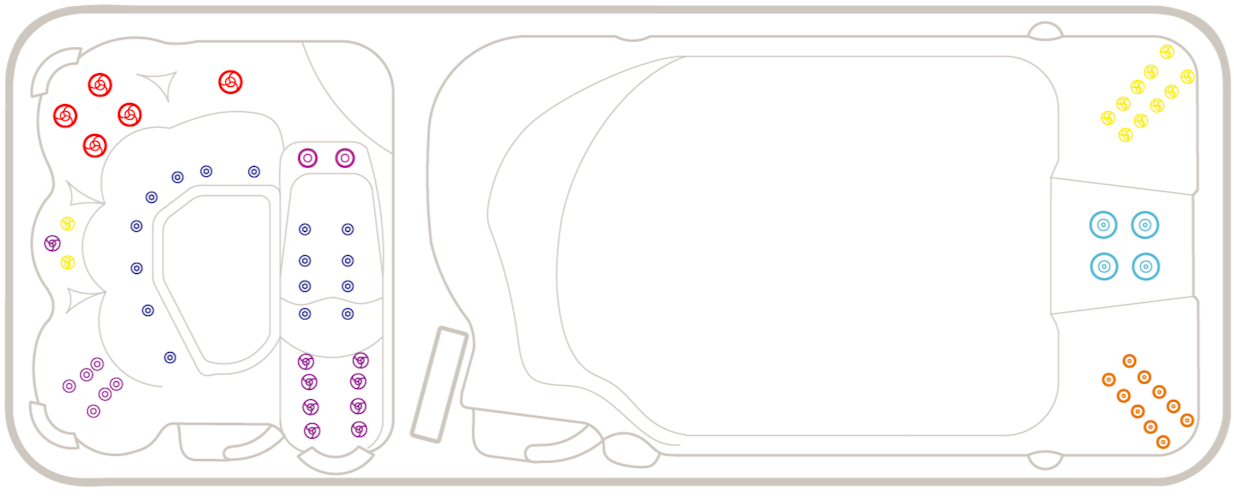

Jet Layout

The Hydrozone™ swim spa features a range of hydrotherapy jets for a relaxing massage and fitness training.

Standard Jets

4 x 150mm Swim Jets

5 x 127mm Single Spinning Jetss

2 x 127mm Directional Jets

6 x 75mm Directional Jets

9 x 75mm Single Spinning Jets

10 x 50mm Directional Jets

12 x 50mm Twin Spinning Jets

16 x 40mm Air Jets

Hydrozone™

Hydrozone™ Extreme™ model shown.

Jet Types

Available jet types for this model.

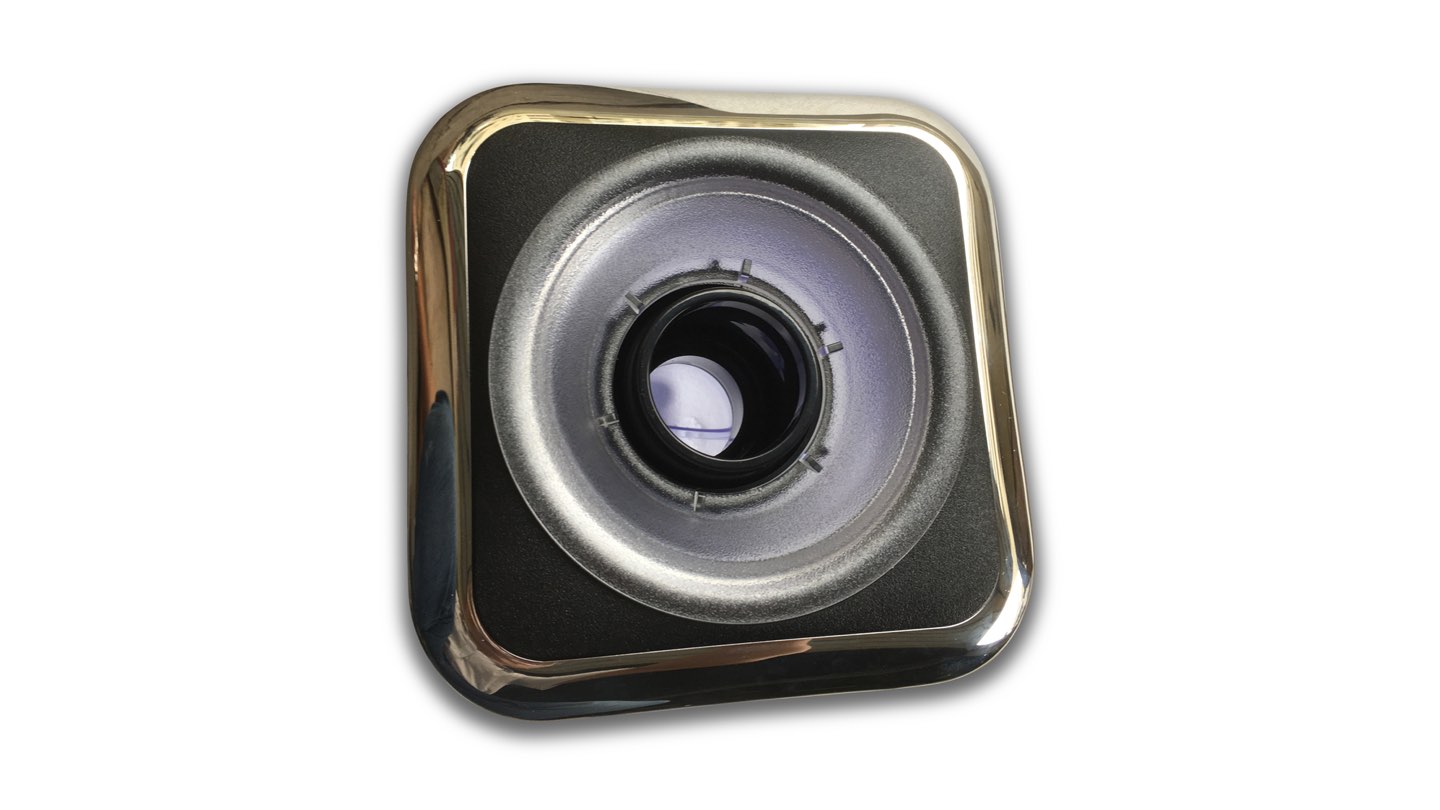

150mm Swim Jet

The 150mm swim jets create a current strong enough to swim against. You can even personalise your work out by adjusting the pressure on each jet individually.

127mm Single Spinning Jets

This large single spinner gives a rotating massage effect similar to a masseuse using their thumb in a kneading fashion. They provide a very effective back massage.

127mm Directional Jet

The 127mm directional jets provide an intense, pressure point massage. These are particularly effective at treating knotted muscles in the back.

75mm Directional Jet

This style of directional jets gives a targeted but less intense pressure point massage. It's very effective for a more prolonged treatment of tired muscles.

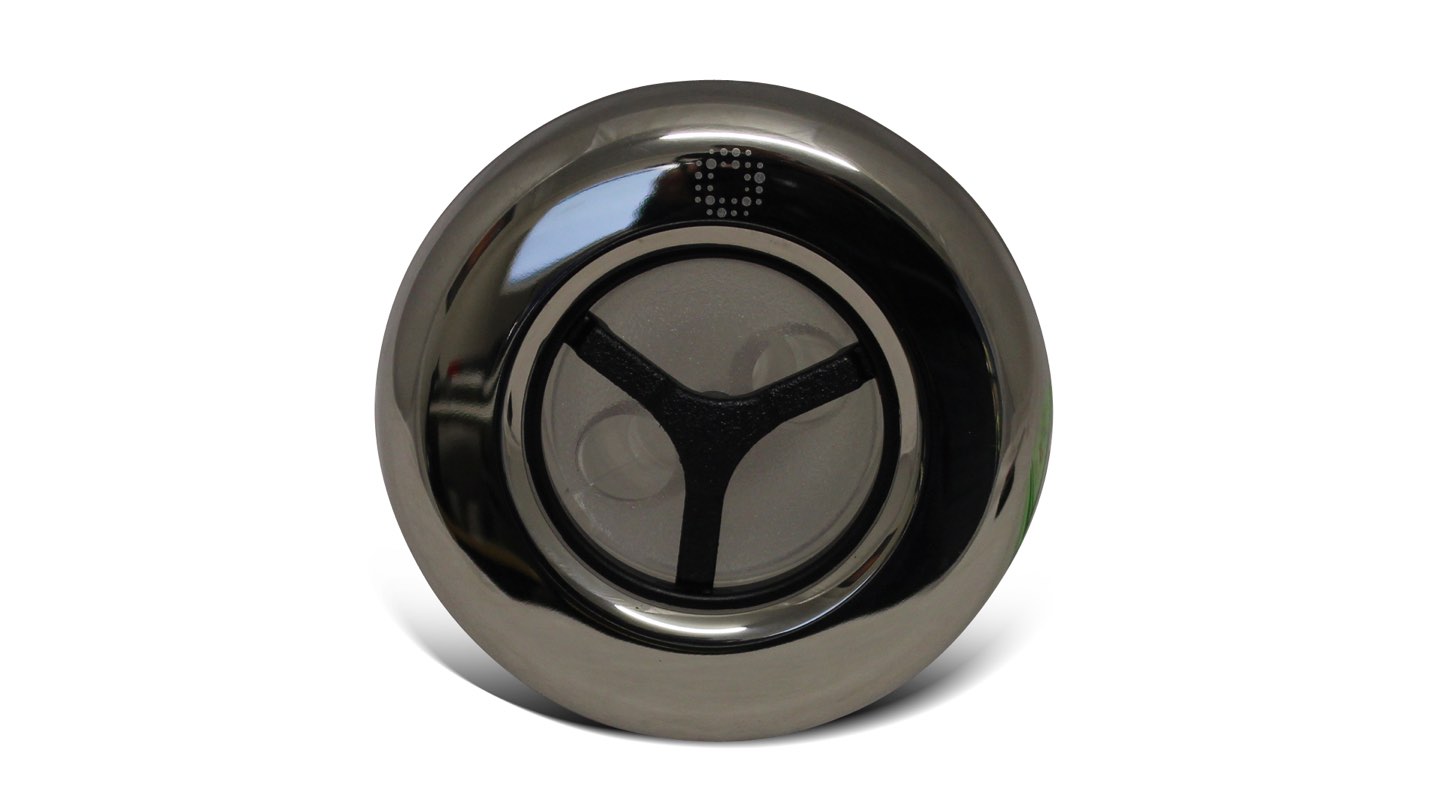

75mm Single Spinning Jet

The 75mm single spinning jets offer a similar effect as the larger 127mm variety but given their smaller size, the kneading effect is lighter and more focused.

50mm Directional Jet

These jets are usually used in banks of 8 or more jets and are often coupled with 50mm twin spinners to give a shiatsu style pressure point massage therapy.

50mm Twin Spinning Jet

The 50mm twin spinner offers a pulsating massage effect ideally suited for neck and shoulder therapy or as part of a shiatsu style massages treatment when teamed with 50mm directional jets.

40mm Air Jet

As the name implies, the 40mm air jets emit an air stream as opposed to a water stream. These are almost always used under the legs and buttocks to provide a relaxing soft tissue massage treatment.

Warranties

The Vortex Spas™ range of spas is covered by comprehensive warranty agreements providing peace of mind when you purchase Vortex Spas™.

Download Warranty

Lifetime Warranty

Vortex Permaframe™ is guaranteed for life against a loss of structural integrity leading to the spa being inoperable.

10 Year Non Pro rata Structural Warranty

All Vortex Spas™ are offered with a 10 year 'non pro-rata' shell structure warranty. This means that if the spa's shell cracks resulting in water loss, for a period of 10 years, the spas shell shall be replaced.

5 Year Non Pro rata Acrylic surface warranty

All Vortex Spas™ are offered with a 5 year 'non pro-rata' acrylic surface warranty. This means that if the acrylic surface blisters resulting in water loss for a period of 5 years, the spa's shell shall be replaced.

5 Year Plumbing, Heater & Jet Warranty

The plumbing system of all Vortex Spas™ is warranted against leaking for 5 years. The heater and jets of all Vortex Spas™ are warranted against defects for a period of 5 years.

2 Year Pump & Equipment Warranty

The circulation pump, jet pump(s) and electronic control system of all Vortex Spas™ are warranted against defects for 2 years. *Please consult your local store for complete warranty details.

Similar Spa Pools

You may want to check out these similar spas to compare features and find the right spa for you and your family.

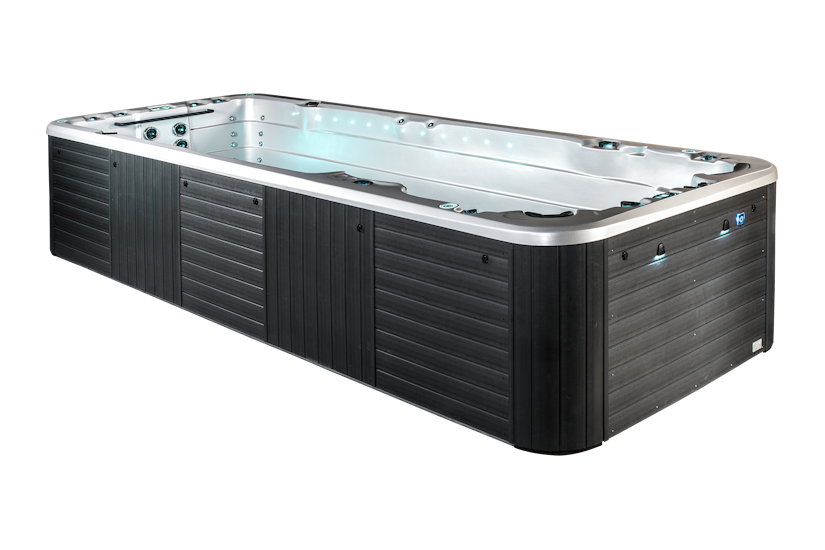

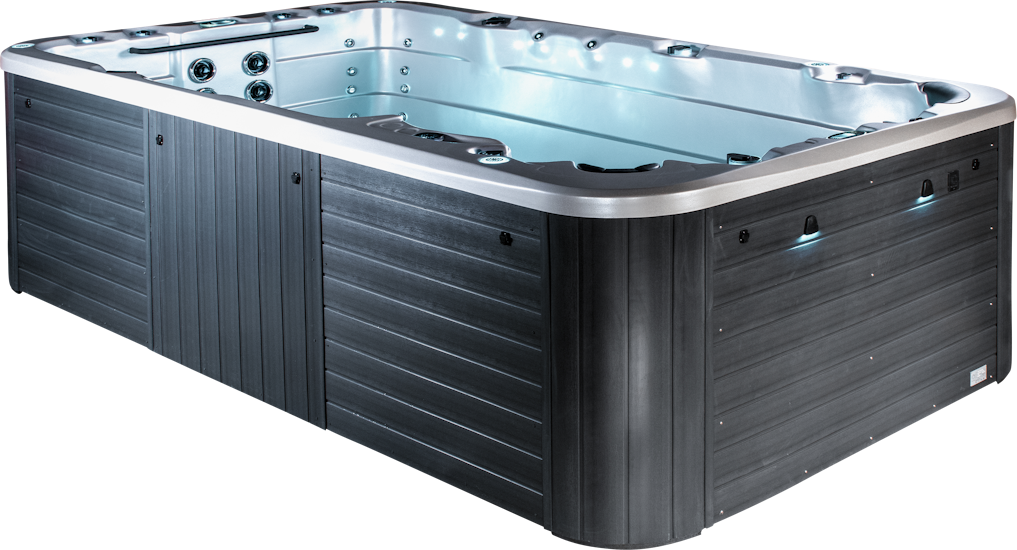

	Vortex Hydrozone™	Vortex Aqualap™	Vortex Aqualounge™
Seating	5 to 7	4	4
Dimensions	5.90 x 2.30 x 1.3/1.5m	5.90 x 2.30 x 1.30/1.50m	3.98 x 2.31 x 1.2m
Volume	1,259 / 5,425 ltr	8500/9720Ltr	4717 ltr
Jets	Up to 68	Up to 81	Up to 81
Weight (Full)	8123 to 8940 kg	Up to 11,354 kg	5,772 kg
